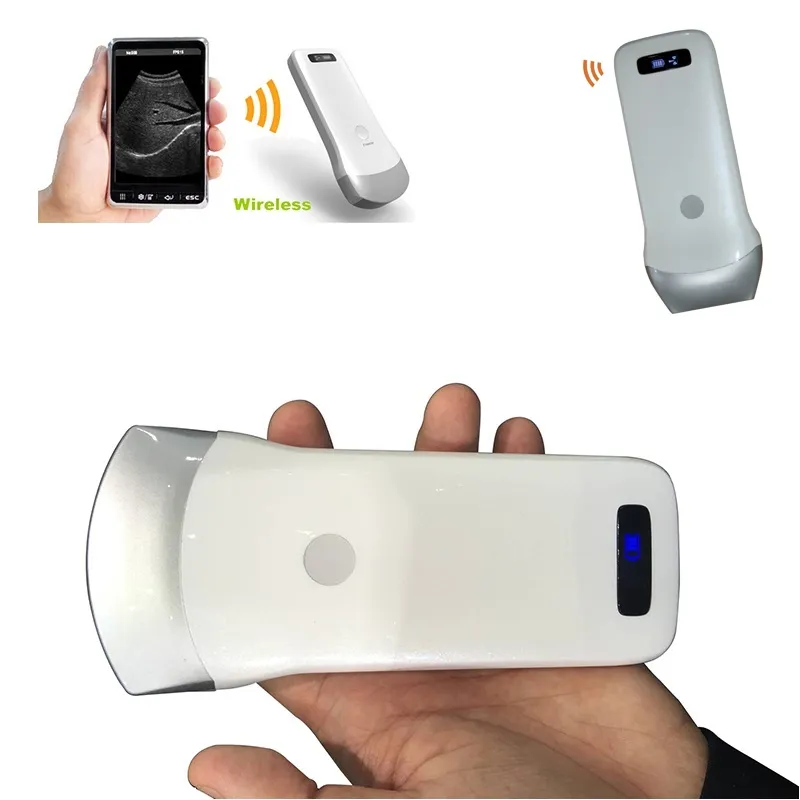

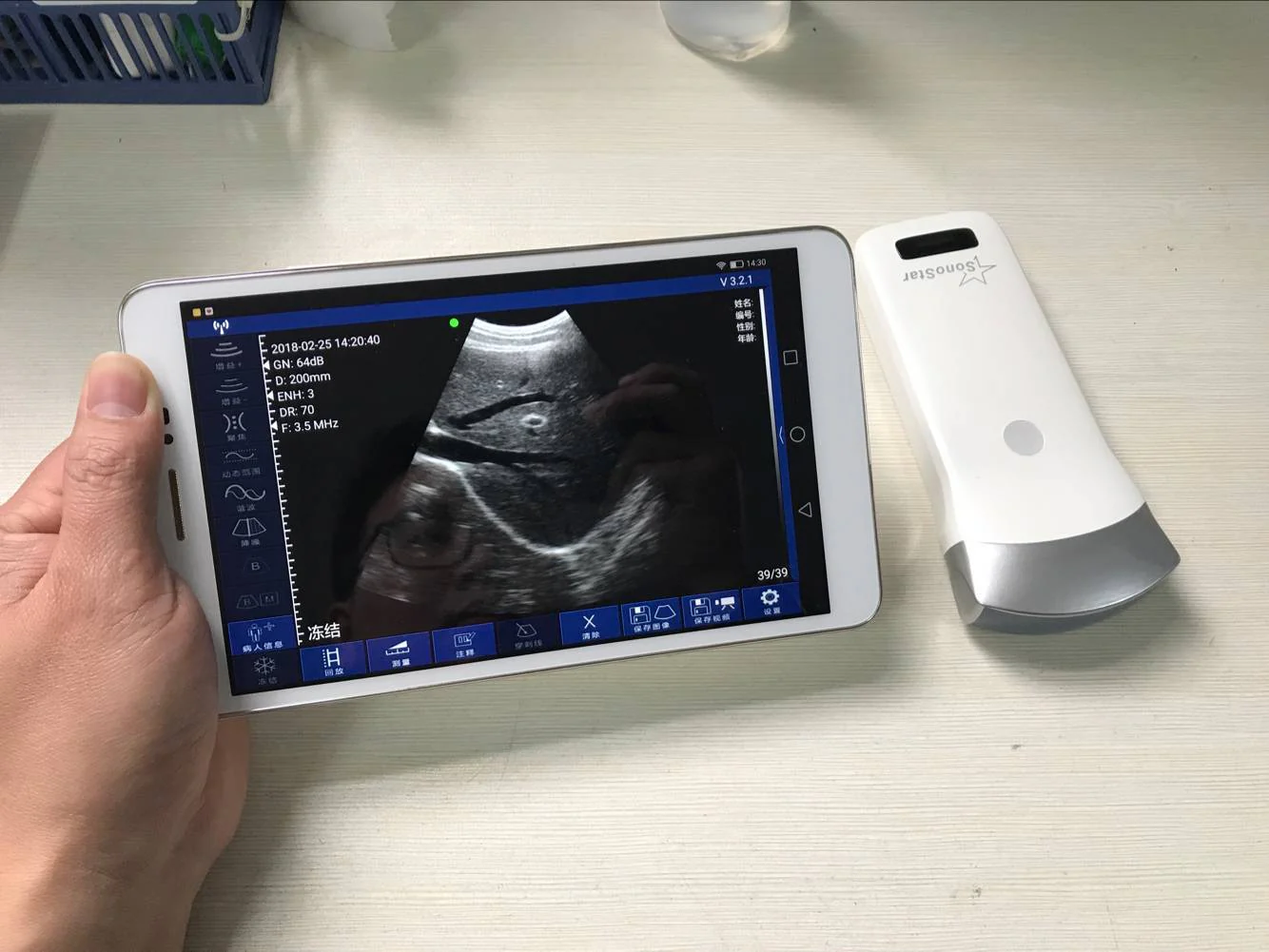

Wireless Ultrasound Probe WIFI Probe Convex / Linear Support ISO Andriod Portable Wifi-Scanner 3.5Mhz / 7.5Mhz
Tips:

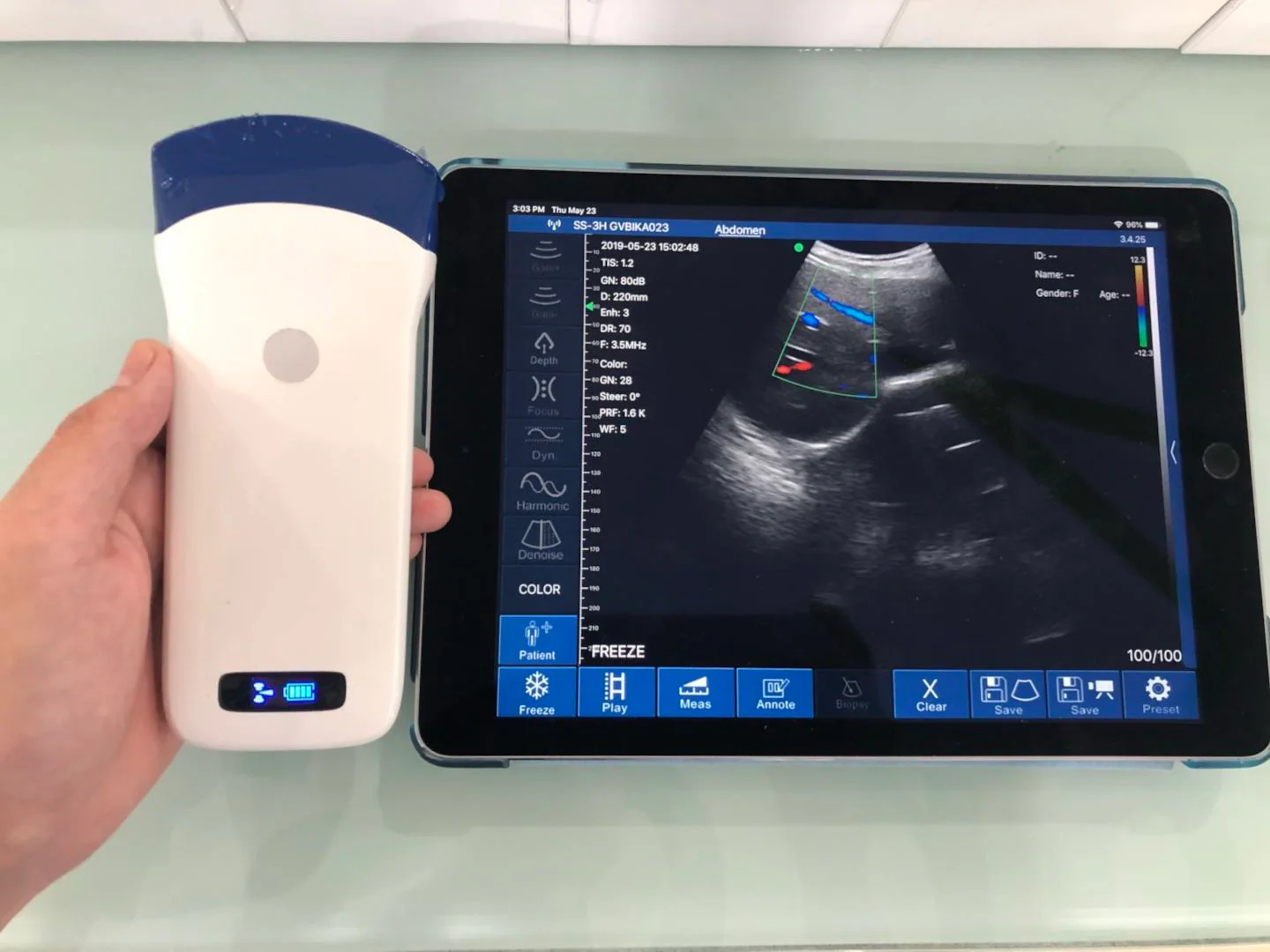

If you want the best visual effect, we recommend using IPAD as the connection screen.
Features:
●High cost-effective
●Wireless connectivity, easy to operate
●Small and light,easy to carry
●Applicable in emergency, clinic, outdoor and vet inspection
●Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing
Specifications:
●Scanning mode: Electronic array
●Probe element: 80
●Display mode: B, B/M
●Image Angle: 60°
●Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise
●Puncture assist function: the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement, and the enhancement function of needle point development.
●Cineplay: auto and manual, frames can set as 100/200/500/1000
●Measure: Length, Area, Angle, Obstetrics
●Image frame rate: 18 frames/second
●Image save format: jpg, avi and DICOM
●Battery working time: 3 hours
●Charge: by USB
●Dimension: 156x60x20mm
●Weight: 220g
●Wifi type: 802.1 1g/20MHz/2.4G/450Mbps
●Working system: Apple ios and Android, Windows

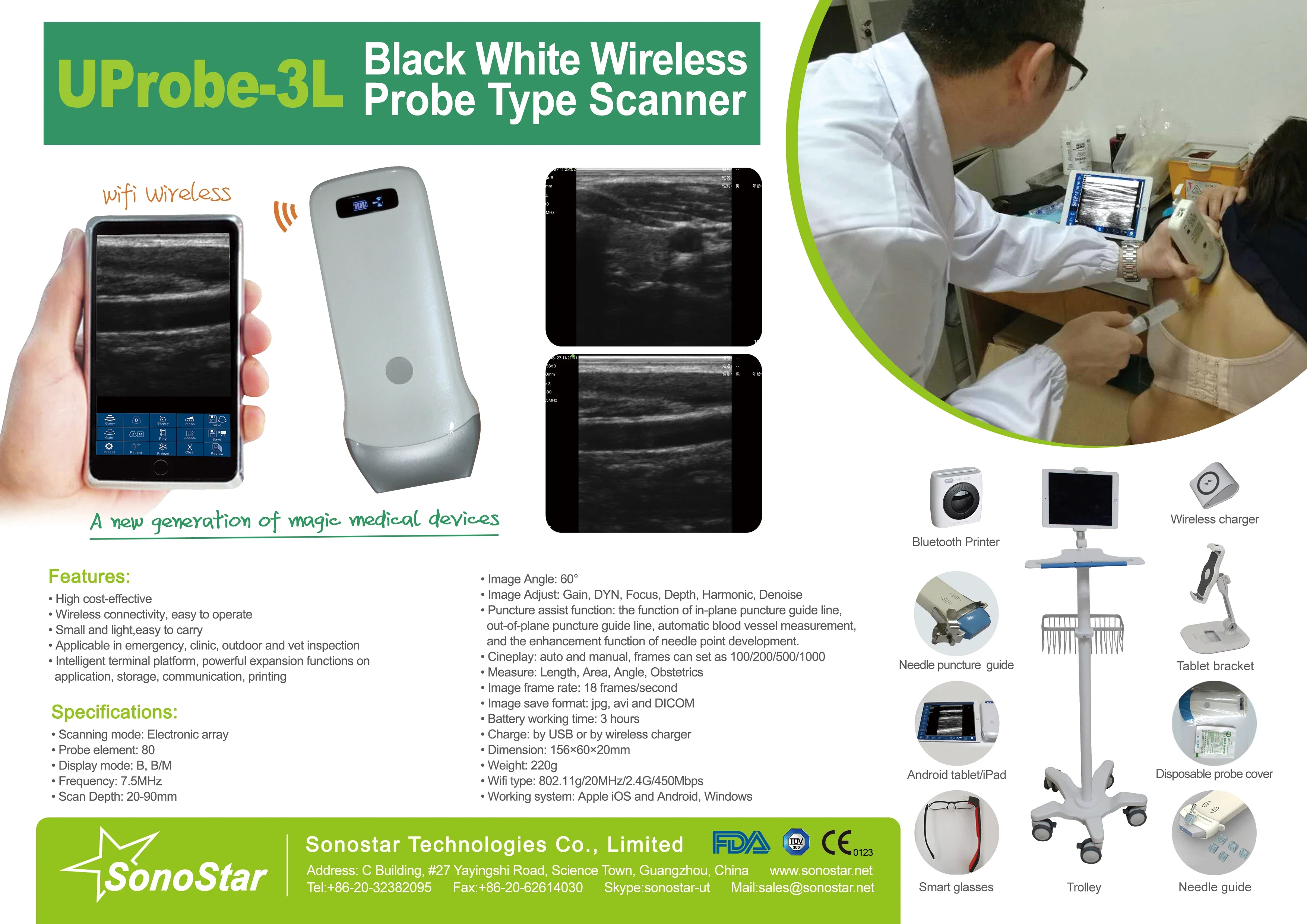

UProbe-3L Linear Probe
●Frequency: 7.5MHz
●Scan Depth: 20-90mm

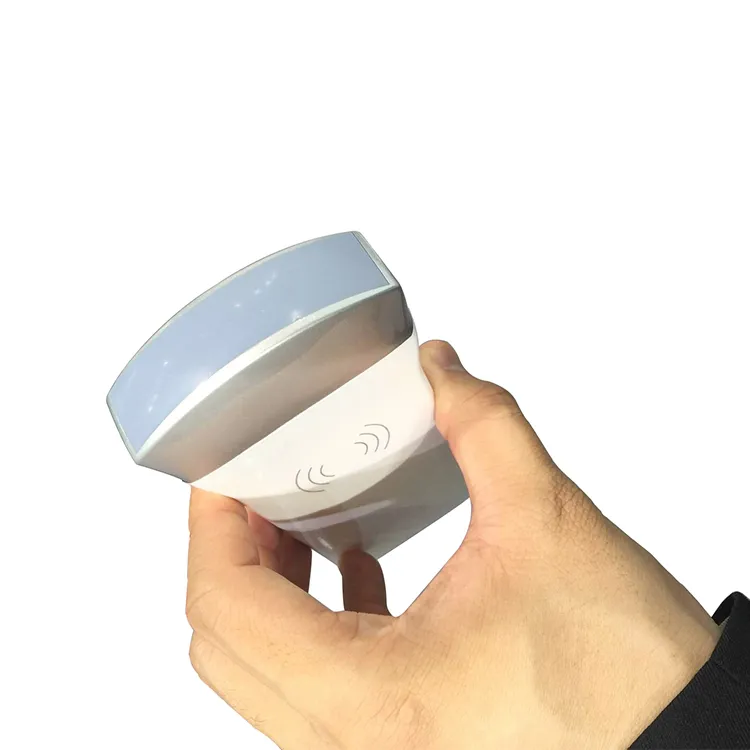

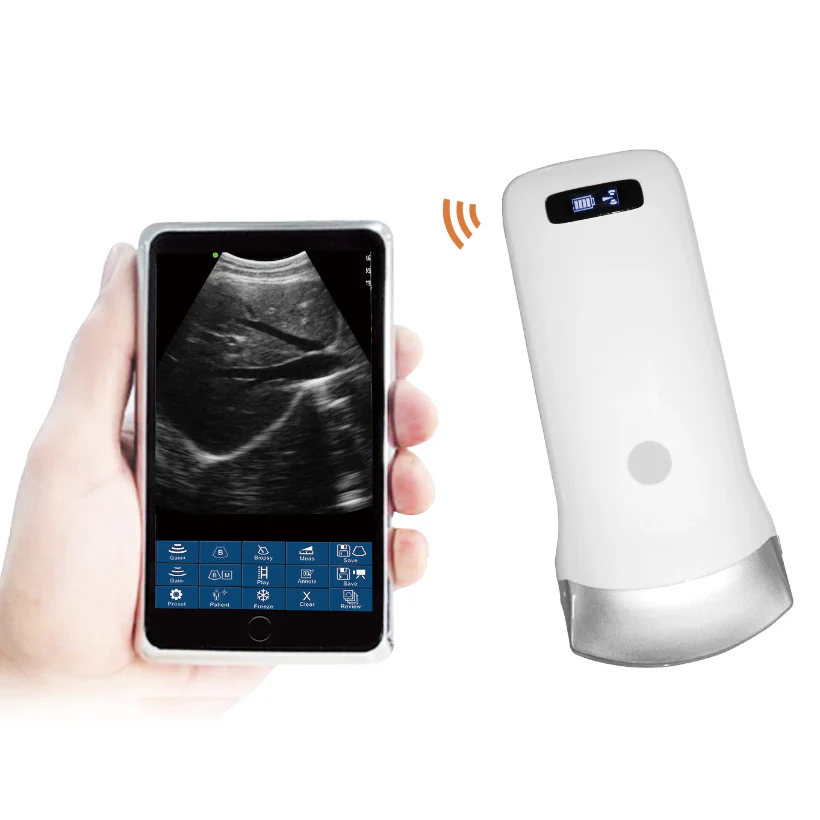

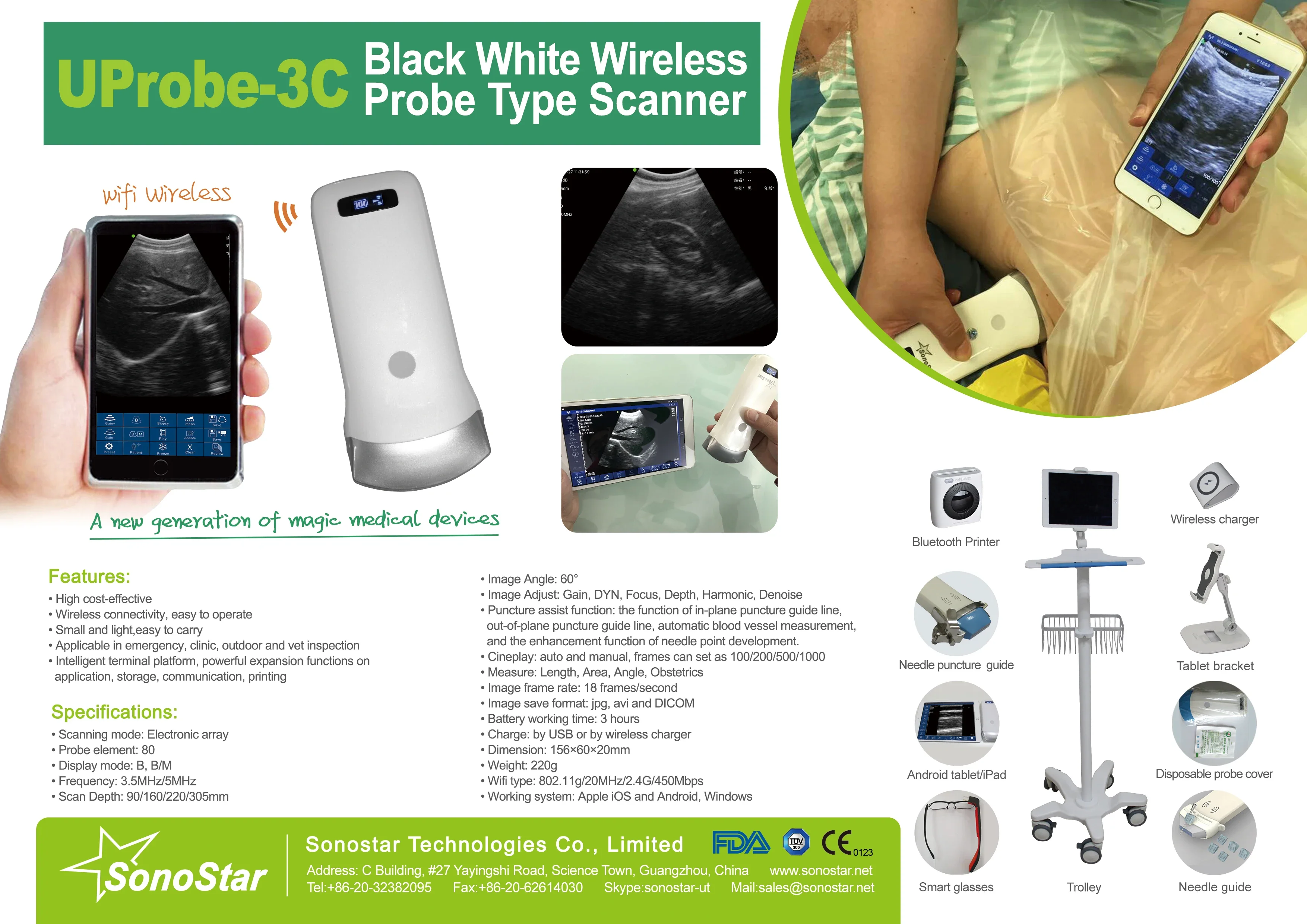

UProbe-3C Convex Probe
●Frequency: 3.5MHz/5MHz
●Scan Depth: 90/160/220/305mm

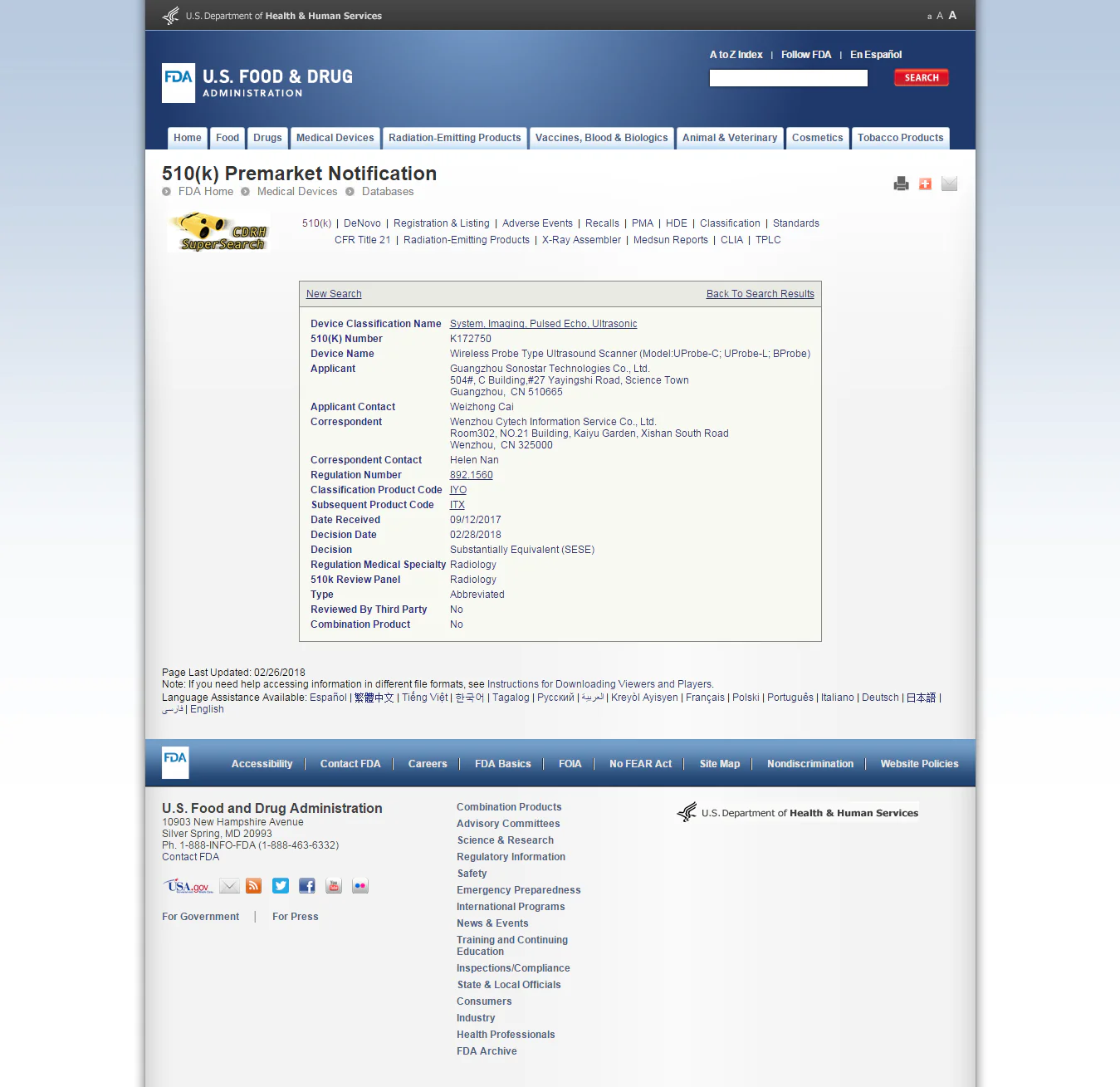

Certification: FDA, CE
Wireless probe support system language: French, German, Spanish, English, Russian, Portugal, Italy
Android version: Use Google Play to search for Wirelessusg
Apple iOS: Use App Store to search for Wirelessusg

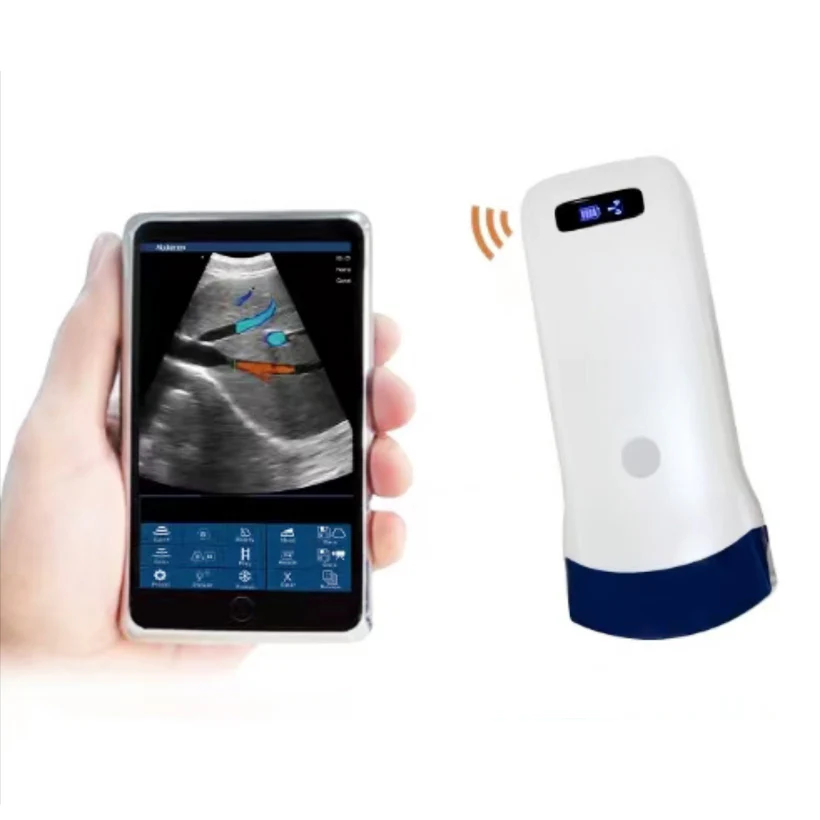

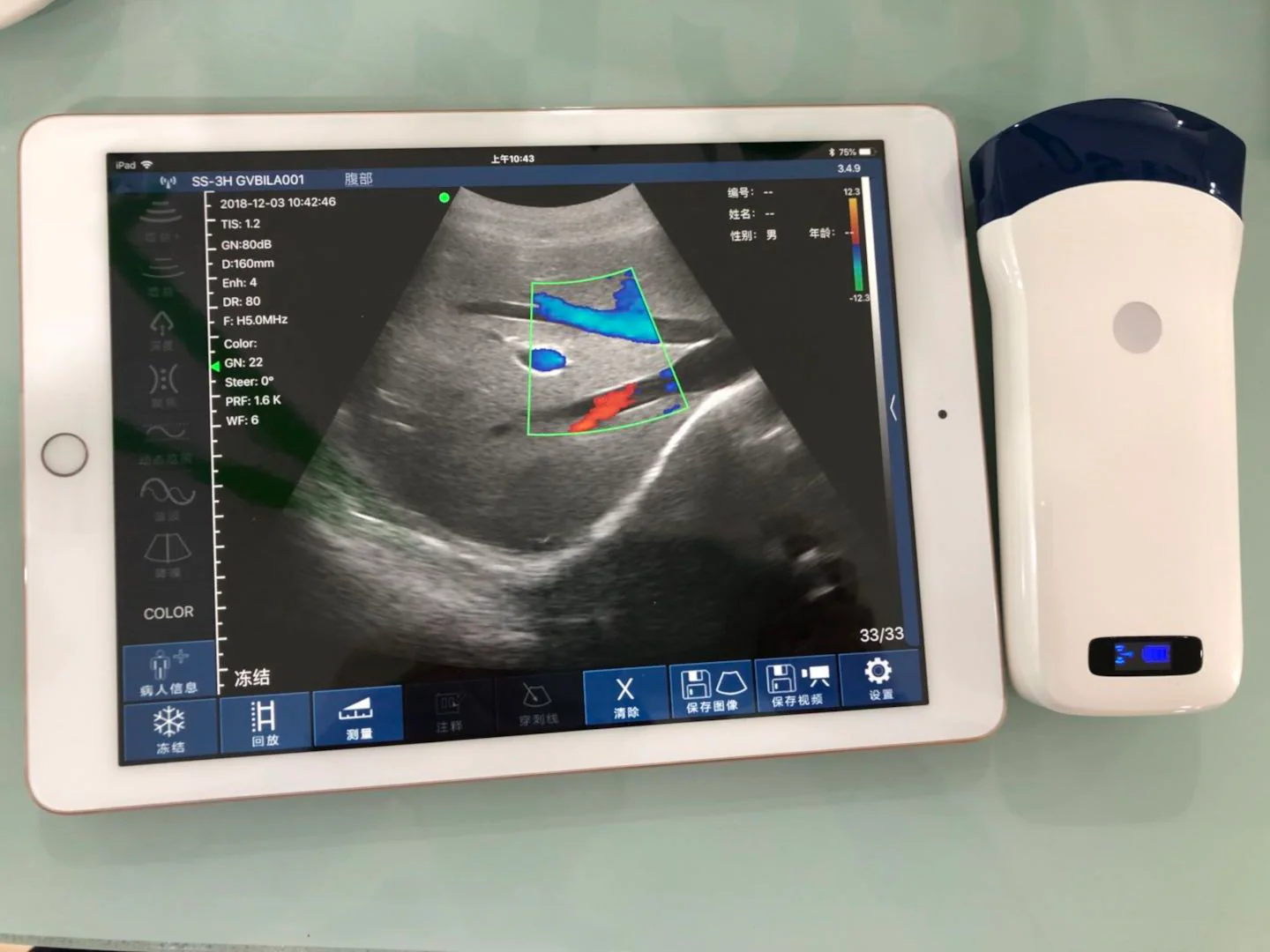

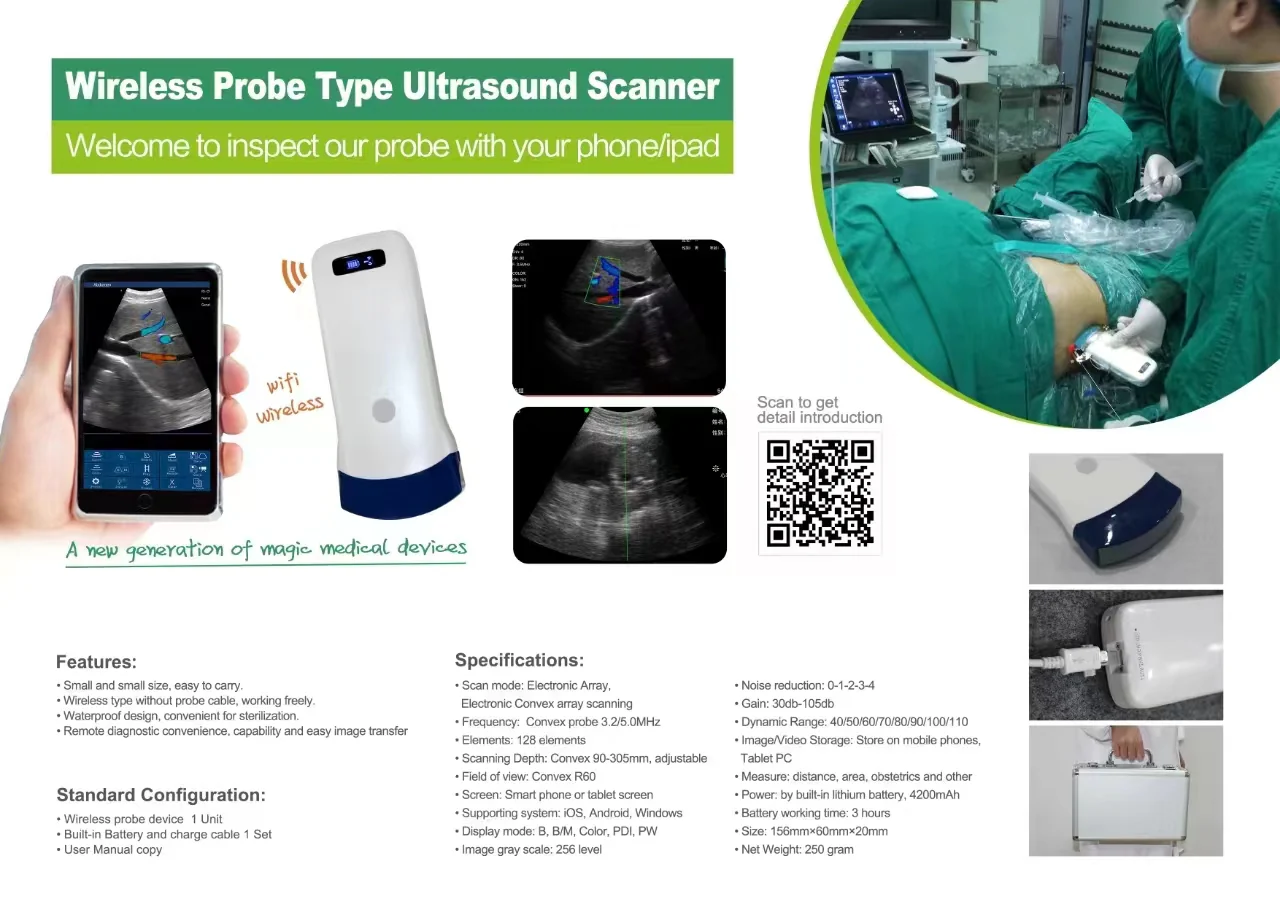

Color Doppler1 28E Convex
Features:
●Small and small size, easy to cary.
●Wireless type without probe cable, working freely.
●Waterproof design, convenient for sterilization.
●Remote diagnostic convenience. capability and easy image transfer.

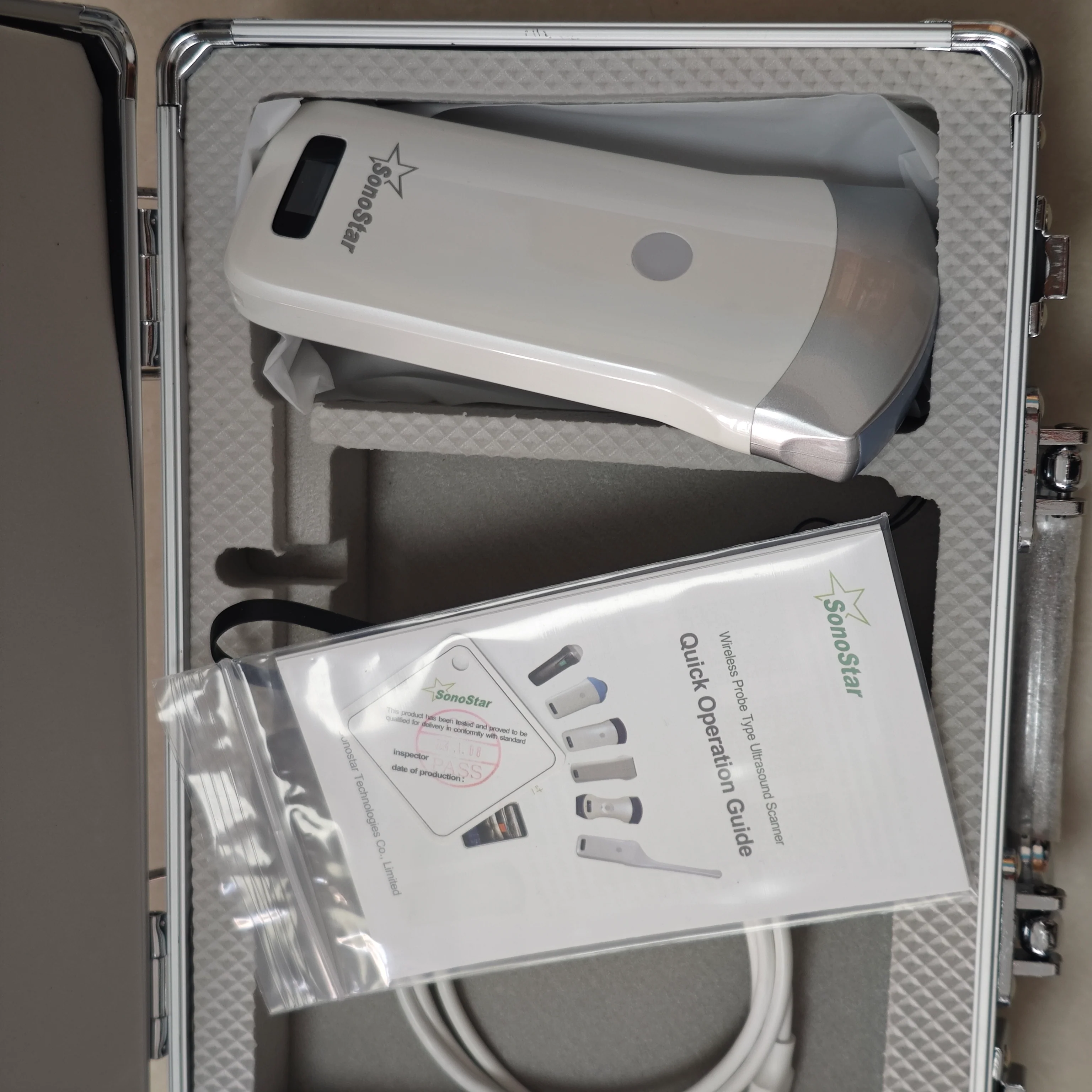

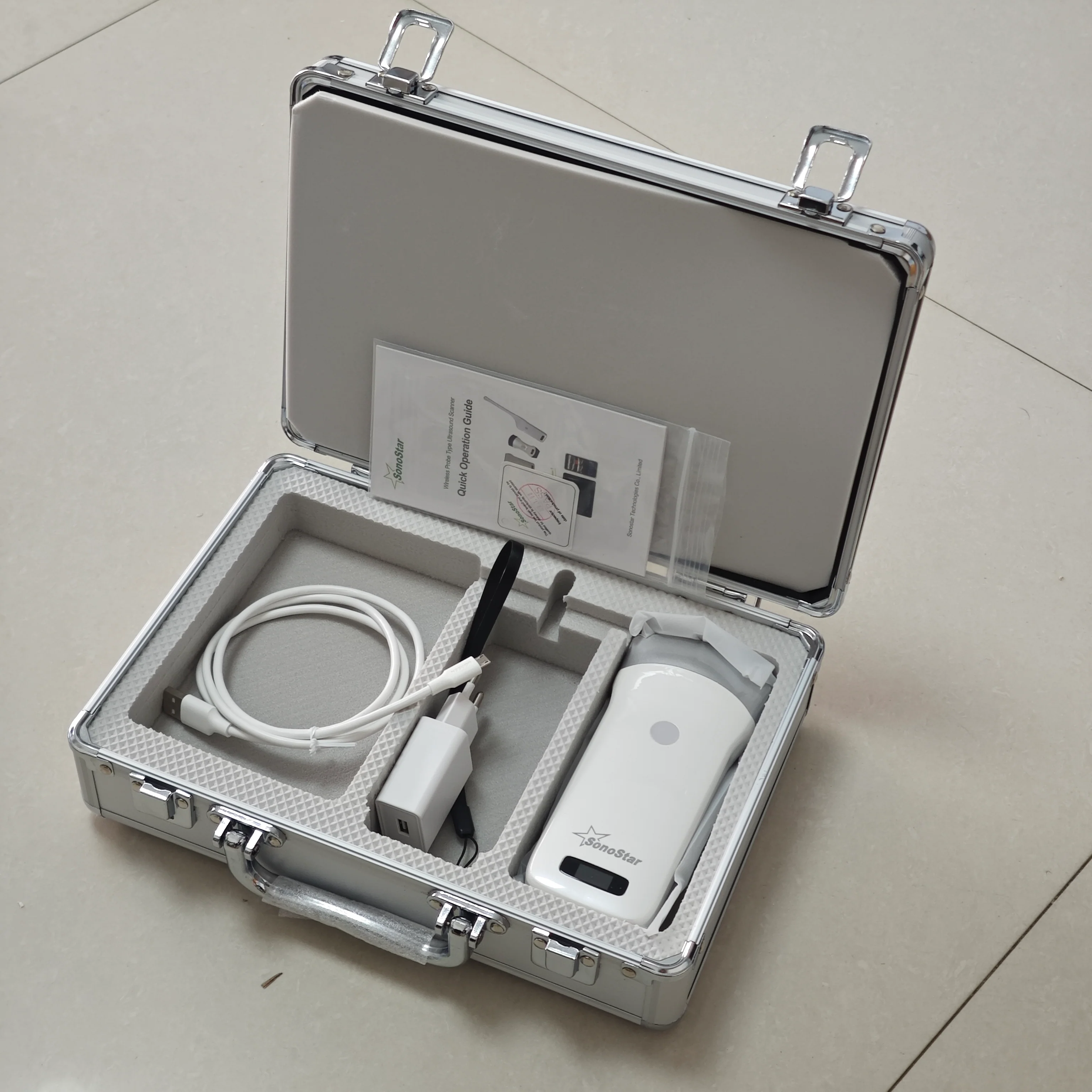

Standard Configuration:
●Wireless probe device 1 Unit
●Built-in Battery and charge cable 1 Set
●User Manual copy
Specifications:
●Scan mode: Electronic Array,
Electronic Convex array scanning
●Frequency. Convex probe 3.2/5 .OMHz
●Elements: 128 elements
●Scanning Depth: Convex 90-305mm, adjustable
●Field of view: Convex R60
●Screen: Smart phone or tablet screen
●Supporting system: ios, Android, Windows
●Display mode: B, B/M, Color, PDI, PW
●Image gray scale: 256 level
●Image gray scale: 256 level
●Noise reduction: 0-1-2-3-4
●Gain: 30db-105db
●Dynamic Range: 40/50/60/70/80/90/100/110
●Image/ideo Storage: Store on mobile phones,Tablet PC
●Measure: distance, area, obstetrics and other.
●Power: by built-in lithium battery, 4200mAh
●Battery working time: 3 hours
●Size: 156mmx60mmx20mm
●Net Weight: 250 gram
