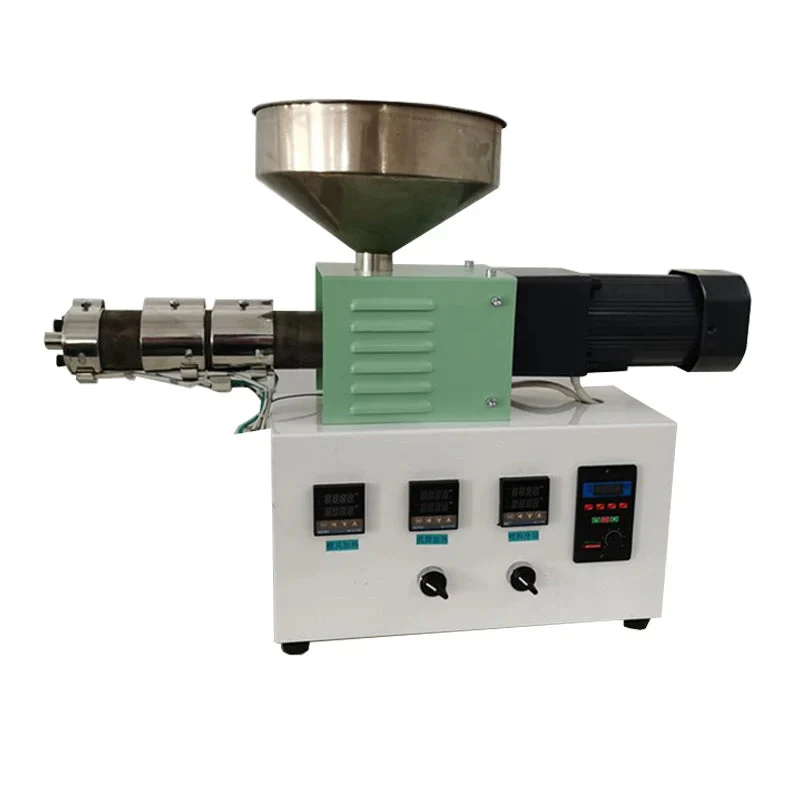

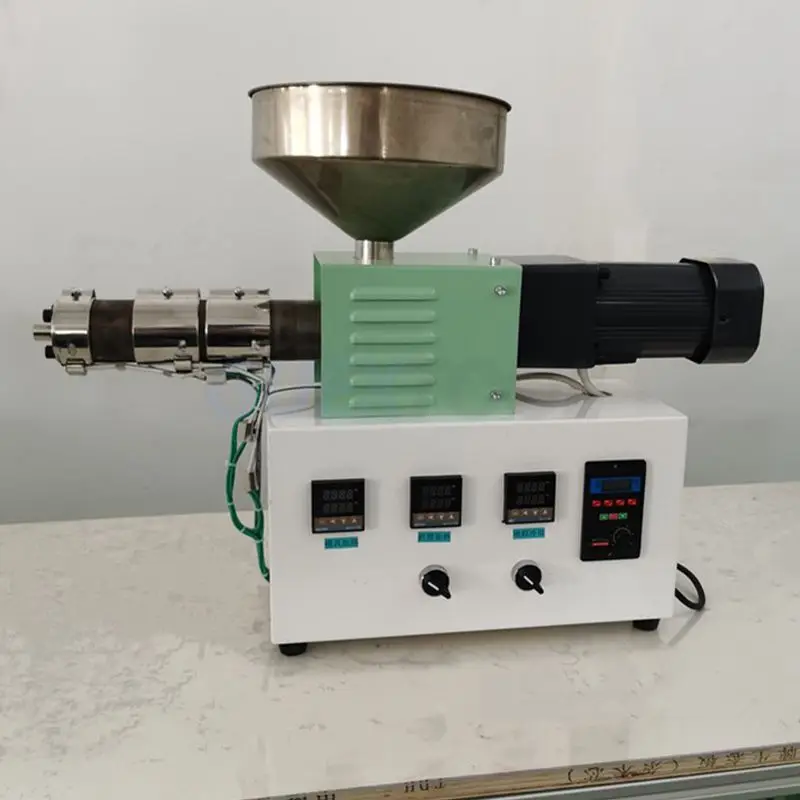

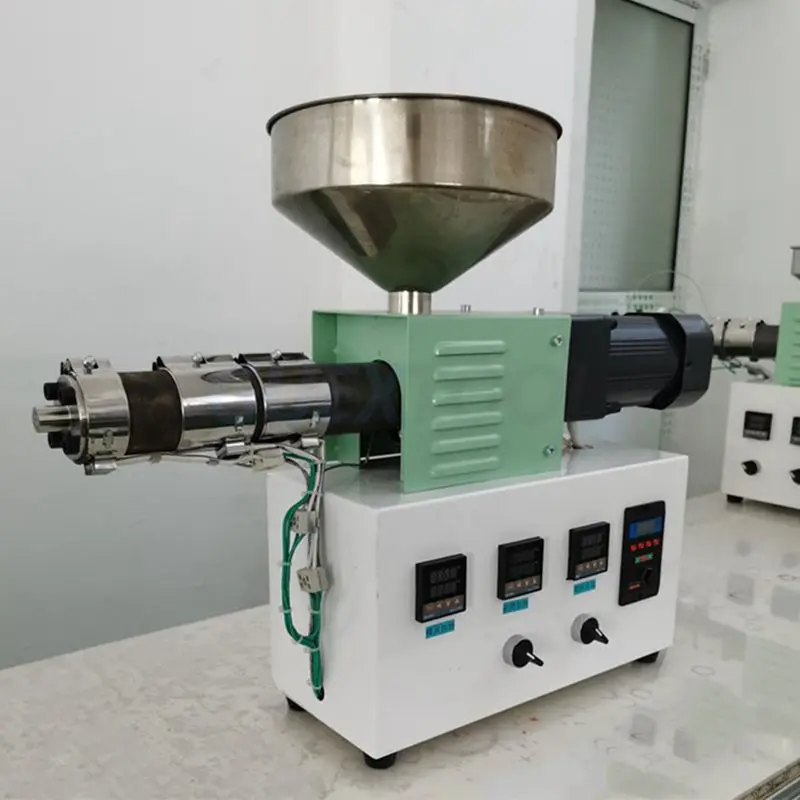

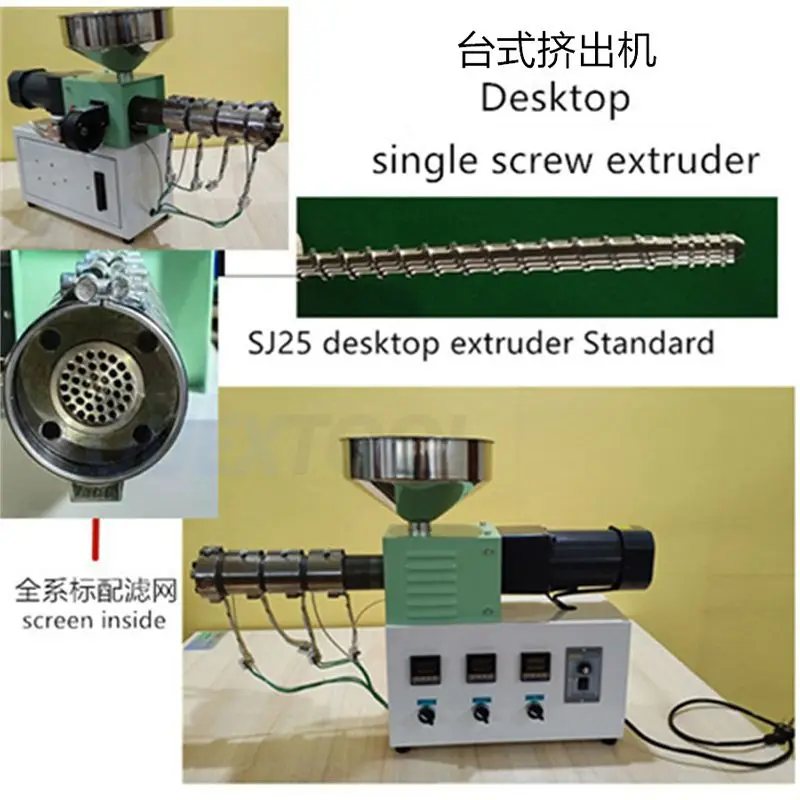

SJ25 Laboratory Desktop Small Extruder Plastic PE PVC Extrusion Equipment Single Screw Equipment Plastic Extruder Extruder

Product details

Screw diameter:25mm,

Design output:0.1-2KG/h.

Machine size, 0.76*0.2*0.5m

Weight after wooden box: 40KG

Extrusion centre height: 300mm.

Extrusion direction: right → out to the left

Motor power; 250w Heating power 800w

Voltage: 220V/(or customizedcustomize)

LD: 14:1

Heating temperature: room temperature to 300C

Feed zone with silent cooling device

Screw barrel material: 38Crmola, Nitrided

Screw compression ratio 3:1

Variable speed control, extrusion speed can be adjusted

Die 1.75mm 2.85mm can be customized up to 0.2mm

Can be used for sludge, PP, polyurethane, minimum 100-300g

Twin-screw machine available

Cleaning of the inner cavity: put some Pe material to wash the screw after the extrusion operation and top off the stock



Attention:   This link is sent to bare metal by default and does not come with a mold. If a mold is needed, please contact customer service promptly after placing an order
