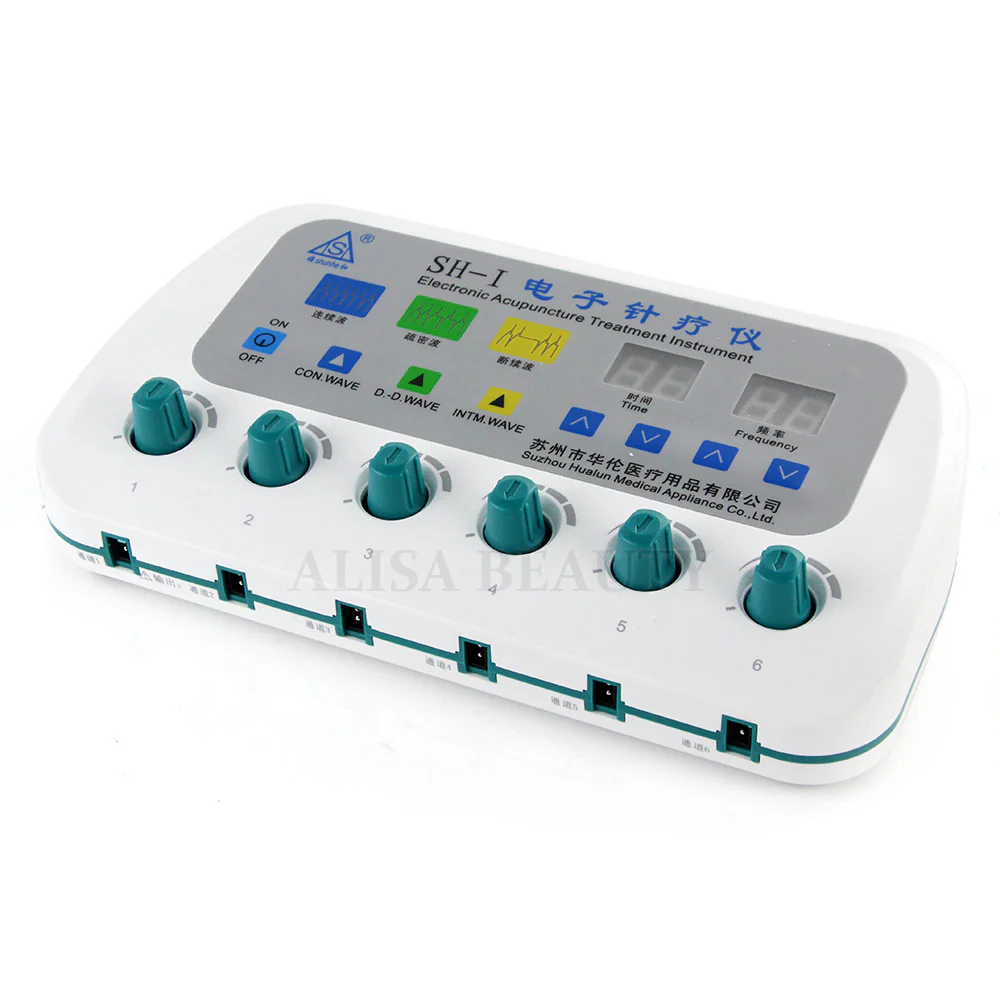

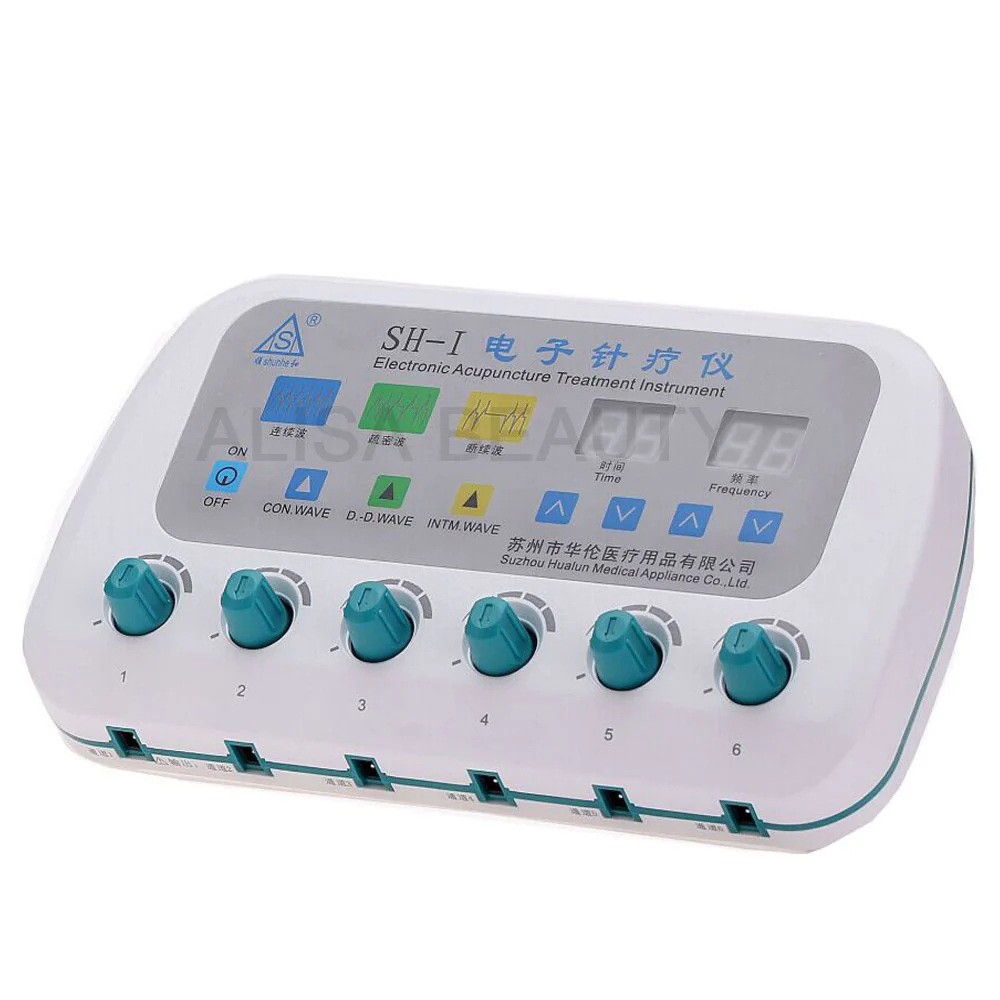

Shunhe SH-I Electronic acupuncture device nerve and muscle stimulator 6 output Electroacupuncture Stimulator needle therapy

Technical Parameters
The output pulse waveform is asymmetric bi-way triangle sharp wave. there're continuous wave, discontinuous wave and disperse-dense wave.
Pulse frequency: 1-99Hz adjustable
The pulse width is no more than 0.475ms
The peak value of output voltage is no more than 60V (500Ω overload)
Output pulse ways: 6-way output

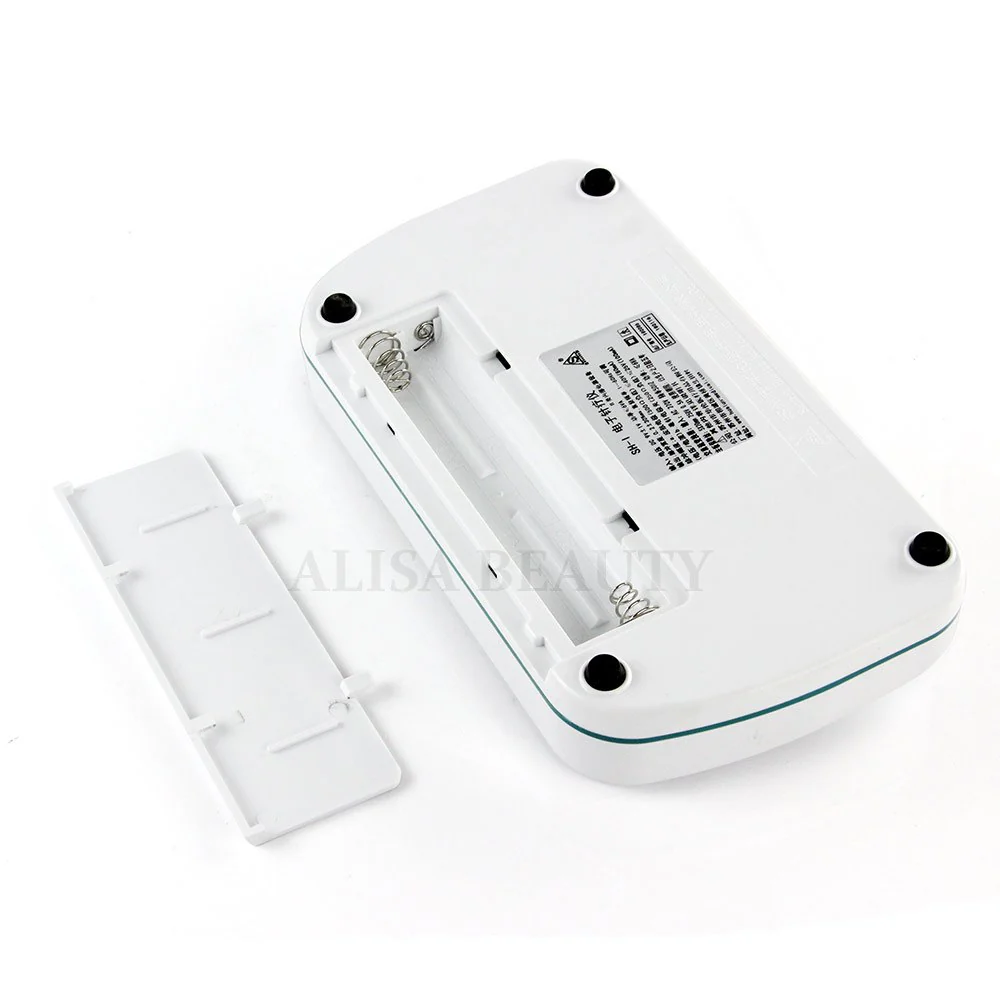

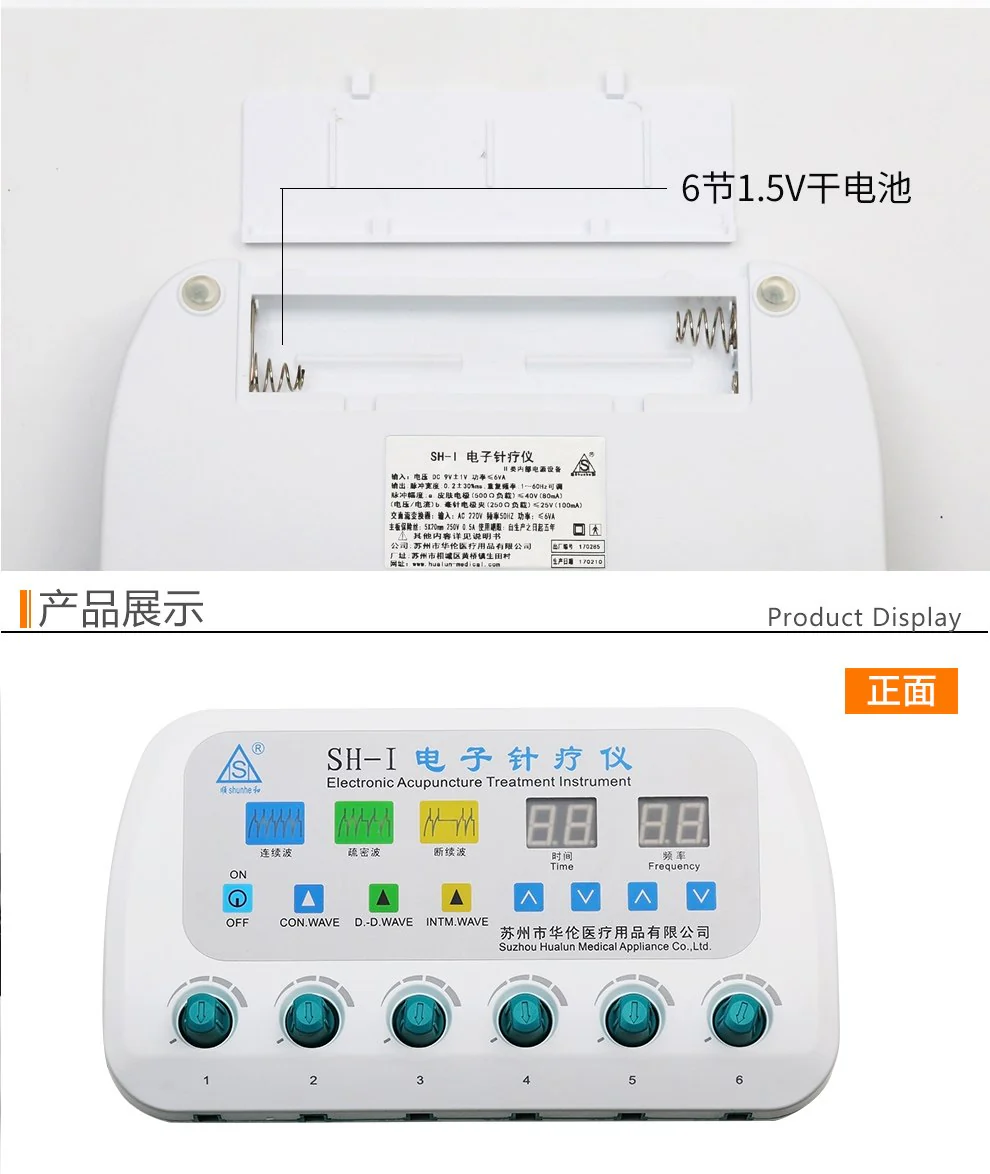

Source voltage: transverter 110V 220V±22V 50-60±1Hz Interior power supply: DC 9V±1 V
We will send the corresponding power plug according to your country.
Input power: DC 9V≤0.8VA; transverter≤5VA
Effective value of maximum output amplitude: skin electrode:≤25V, electrode holder:≤12.5V
Volume: 215*165*70mm
Weight: 1.1kg

Electronic needle therapy instrument is widely used in:
Clinical inside and outside, gynecology, dermatology, ophthalmology, surgery, orthopedics, such as disease hundreds kinds of each system, especially for the week of common diseases such as migraine, trigeminal neuralgia, facial nerve palsy, sciatica, toothache, scapulohumeral periarthritis, tennis elbow, contusion, muscle strain, acute stomach pain, menstrual cramps, constipation, diarrhea, renal colic, biliary colic, acute appendicitis, acute tonsillitis, banded blister all have remarkable curative effect.

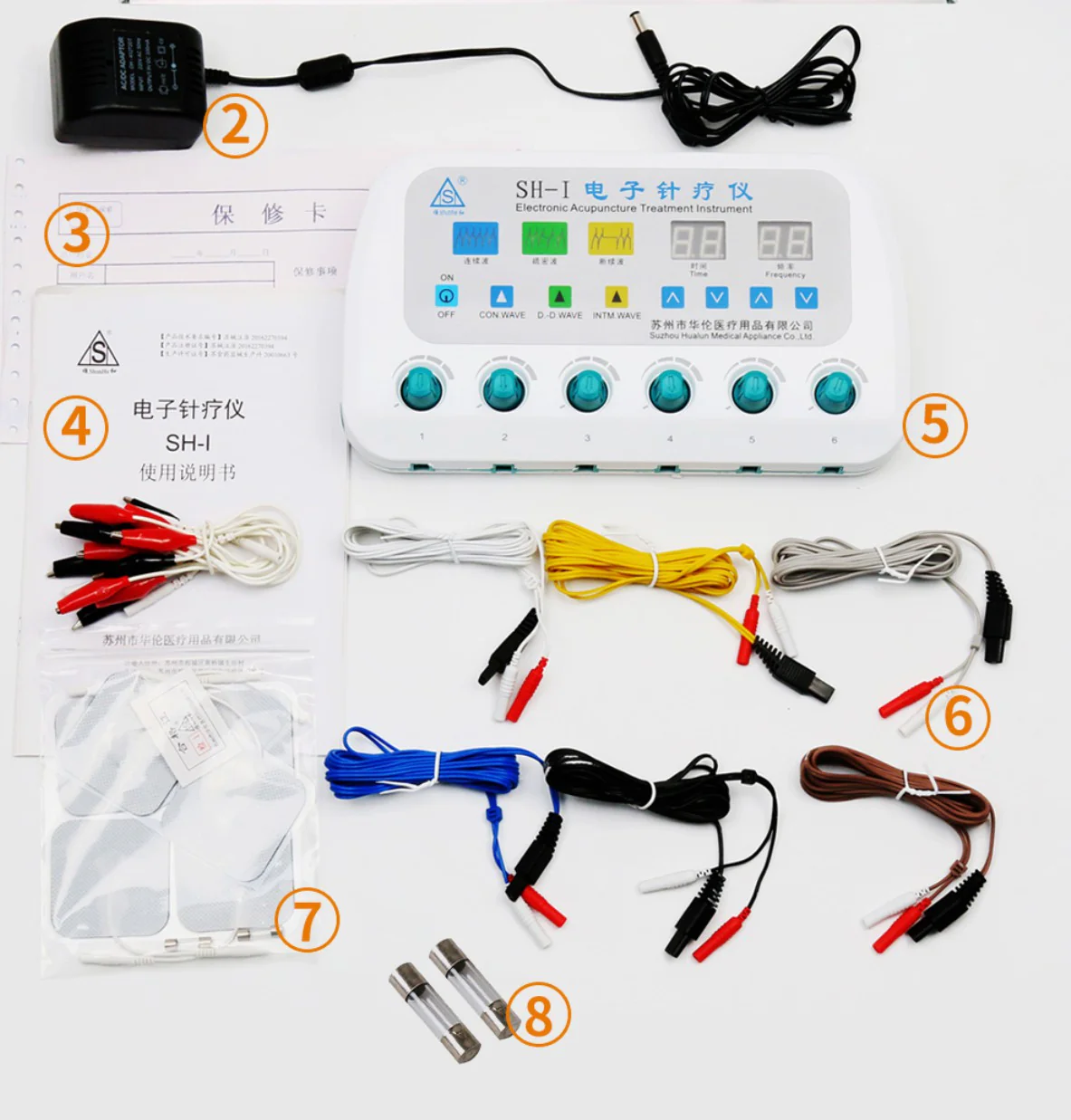

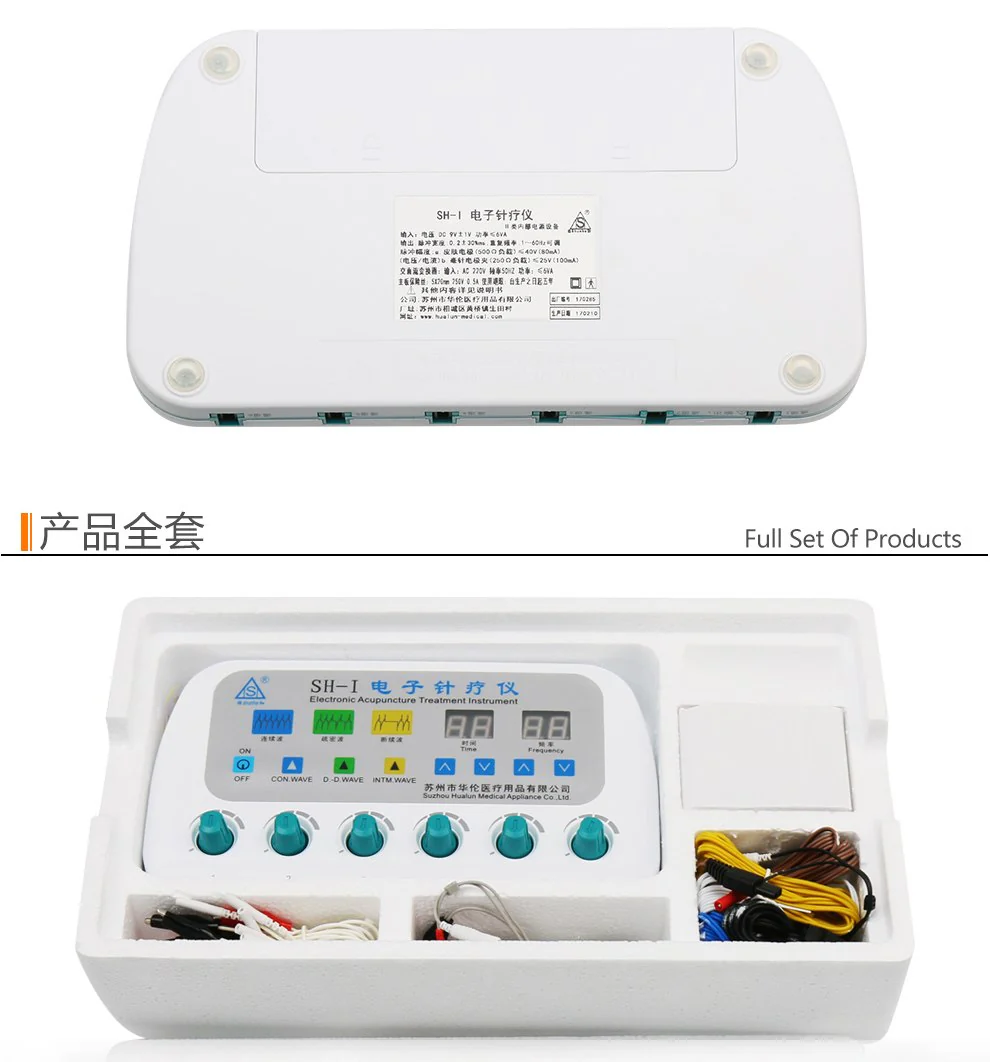

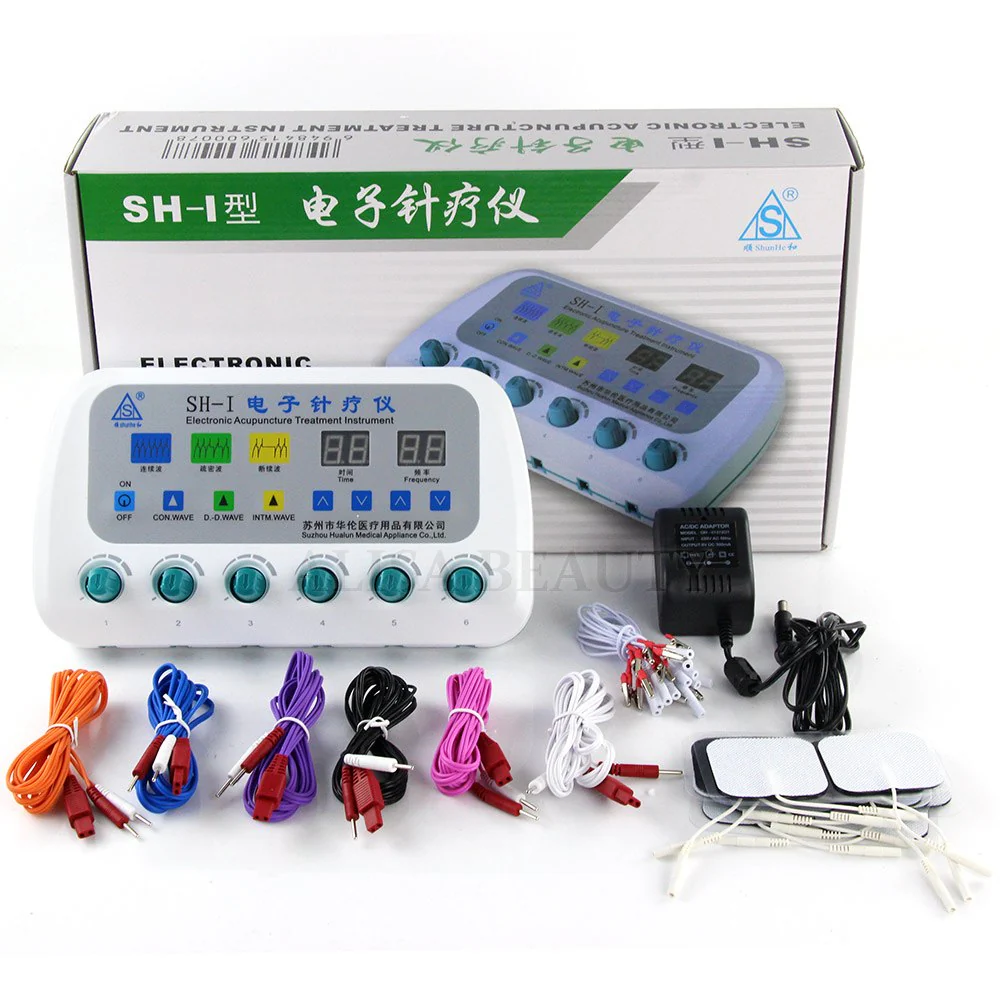

Packing list:
Electronic acupuncture device * 1

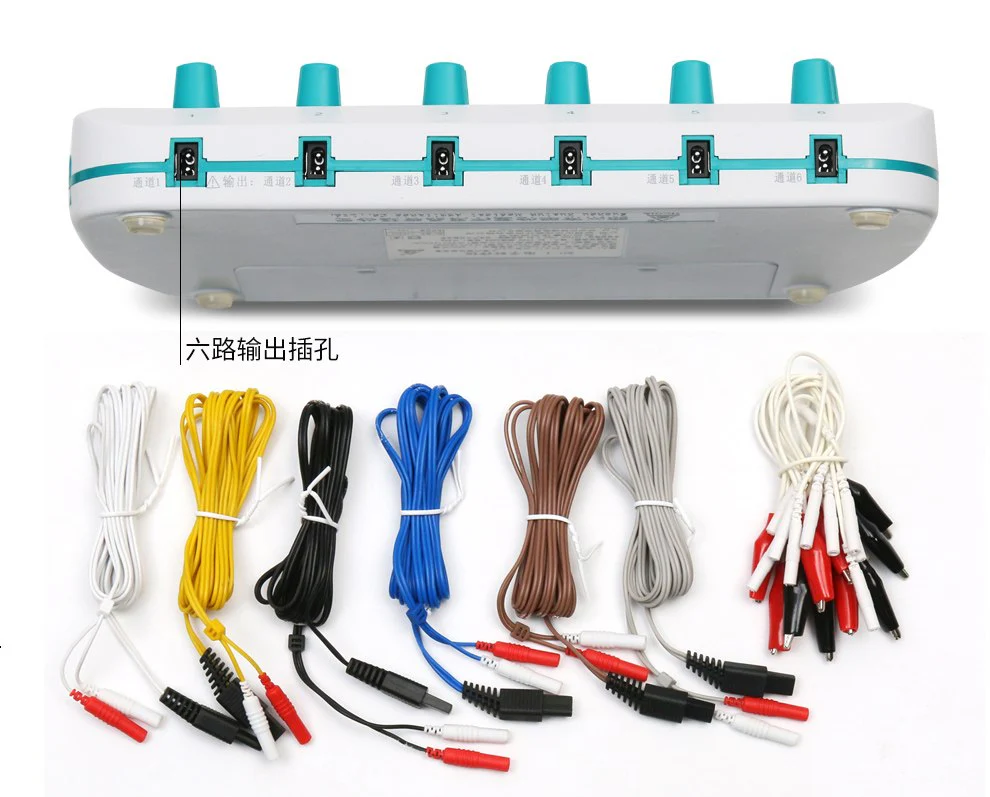

Output wire * 6

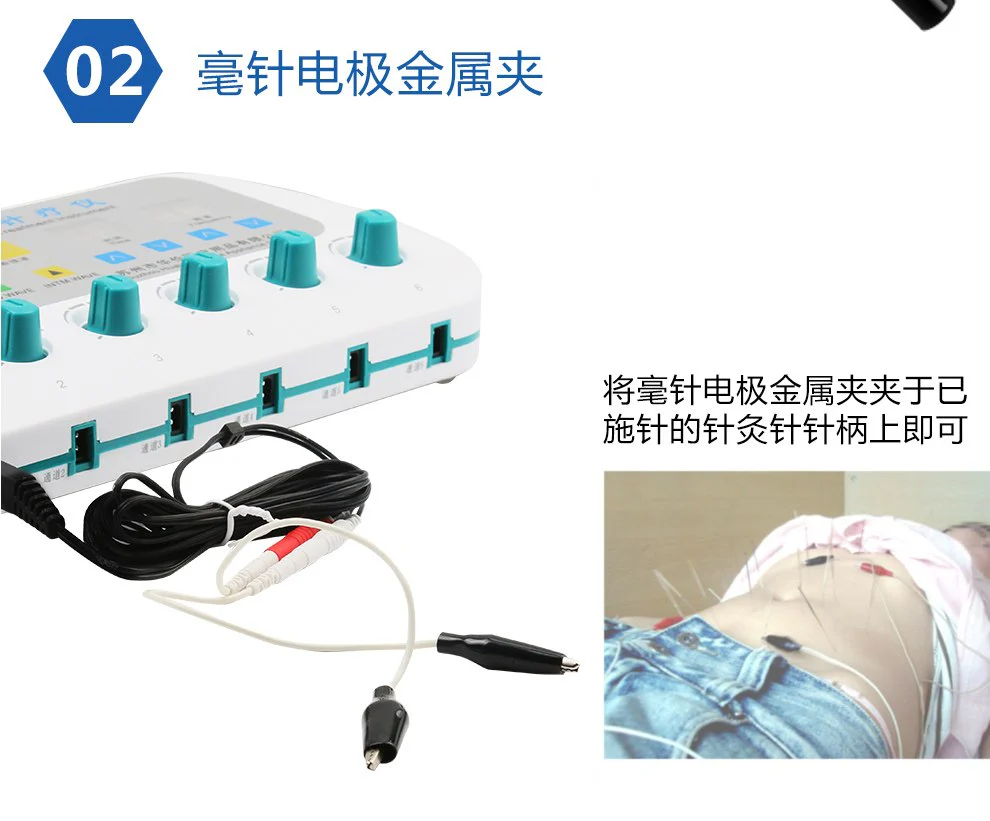

Needle electrode metal clip * 6 pair
Skin electrodes * 6 pairs
The power adapter * 1

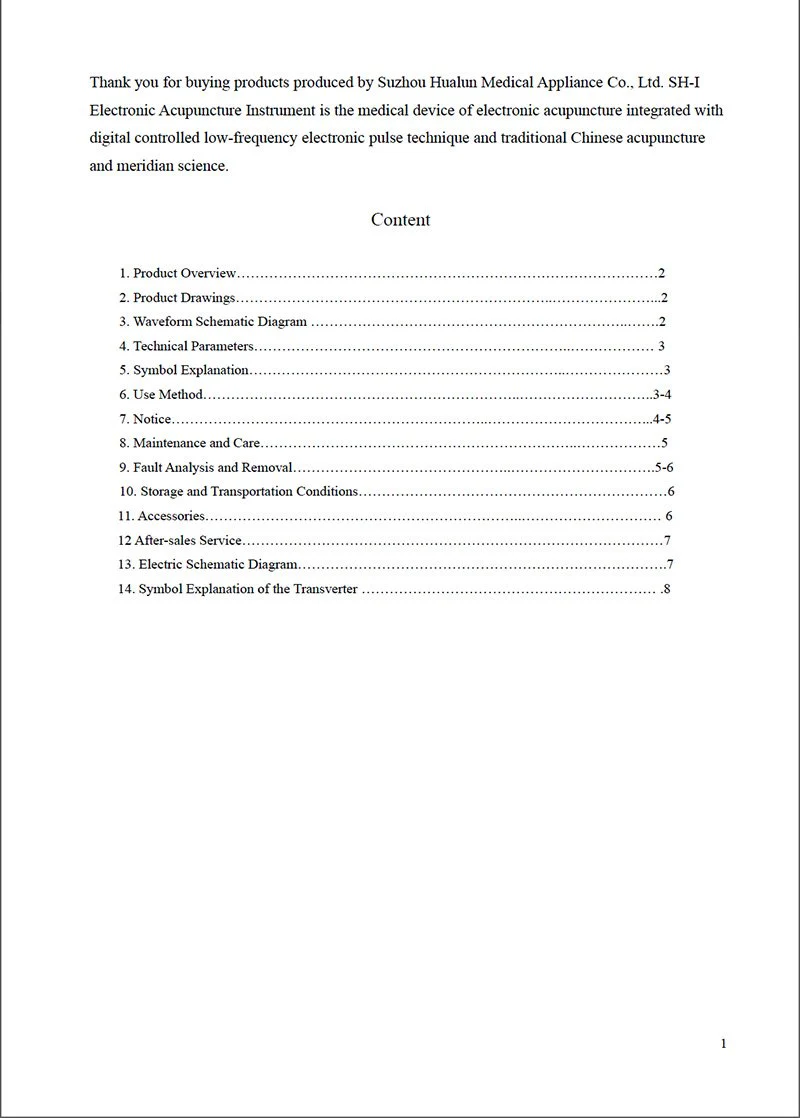

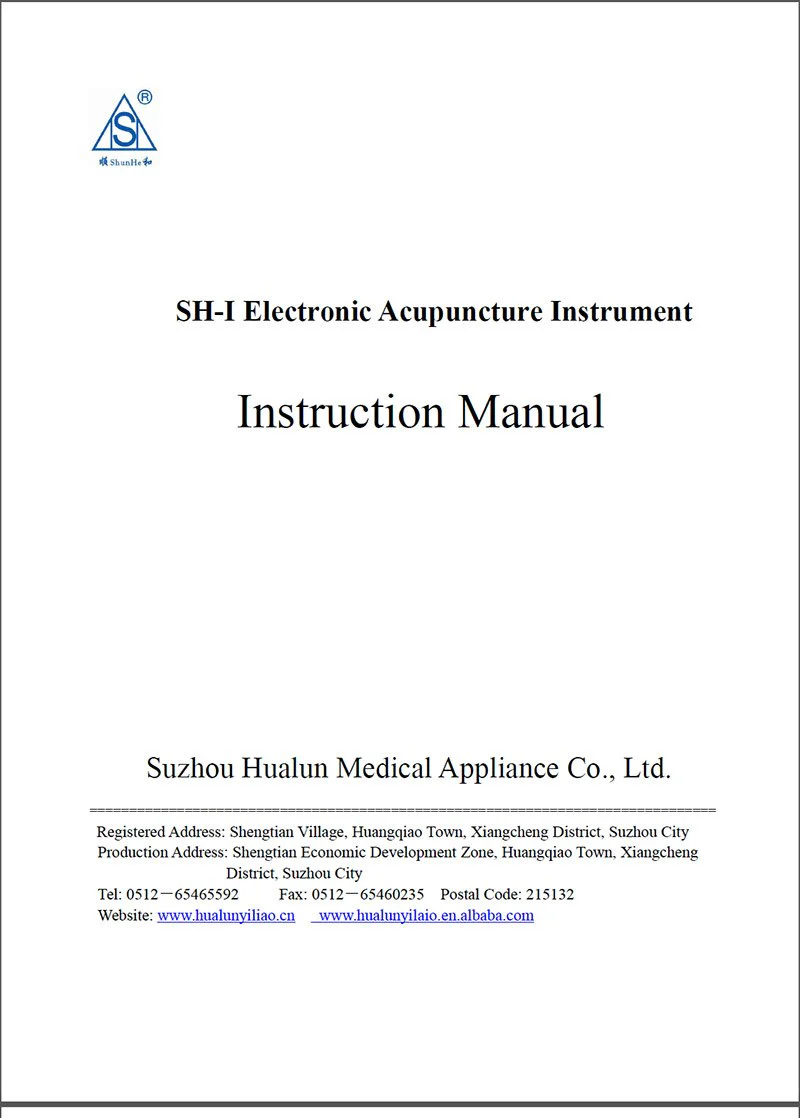

English manual * 1
