Original Hugen 50kHz ~ 6.3GHz tinyVNA - LiteVNA 62 2.8" Display Vector Network Analyzer HF VHF UHF Antenna

tinyVNA -- LiteVNA 62 (50 kHz ~ 6.3 GHz)

tinyVNA- LiteVNA improves on the popular NanoVNA and SAA2. Now you can get a portable vector network analyzer (VNA) as small as the NanoVNA and capable of meeting the ultra-wide measurement range of 50 kHz to 6.3 GHz.

To minimize power consumption and size, the tinyVNA- LiteVNA uses only one mixer, with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.

Designed with the community's input in mind, the LiteVNA now brings faster scanning speeds and more scan points in addition to a wider measurement range. Combined with an easy-to-use interface consistent with the NanoVNA, the LiteVNA can now be easily used as a field test tool.

tinyVNA - LiteVNA includes a MicroSD slot, so you can save field test data or screens to a MicroSD card at any time. With a measurement range of up to 6.3GHz, the LiteVNA is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GHz wifi and 5.8GHz image transmission.



tinyVNA - LiteVNA Specifications

Parameter	Specification	Conditions
Frequency range	50kHz ~ 6.3GHz	-
System dynamic range	>70dB	f < 3GHz, calibrated
	>50dB	f >= 3GHz, calibrated
S11 noise floor	<-50dB	f <3GHz, calibrated
	<-40dB	f >= 3GHz, calibrated
Frequency stability	<0.5ppm	0℃ - 50℃
Sweep rate	>550 points/s	Avg=1
Sweep points (on device)	10 ~ 1001 points, adjustable	-
Sweep points (USB)	1 ~ 1024 points, adjustable	-
Power supply	USB, 5V±0.5V 600mA MAX	LiteVNA 62
	USB, 5V±0.5V 1A MAX	LiteVNA 64
Battery	Li-polymer 3.7V 1300mAh	LiteVNA 62
	Li-polymer 3.7V 2000mAh	LiteVNA 64
Operation ambient temperature	-10℃ ~ 50℃	The battery performance decreases below 0 ℃.
RF connectors	SMA female	-
Display	2.8”TFT LCD (320×240)	LiteVNA 62
	3.95”TFT LCD (480×320)	LiteVNA 64

Packaging & Shipping

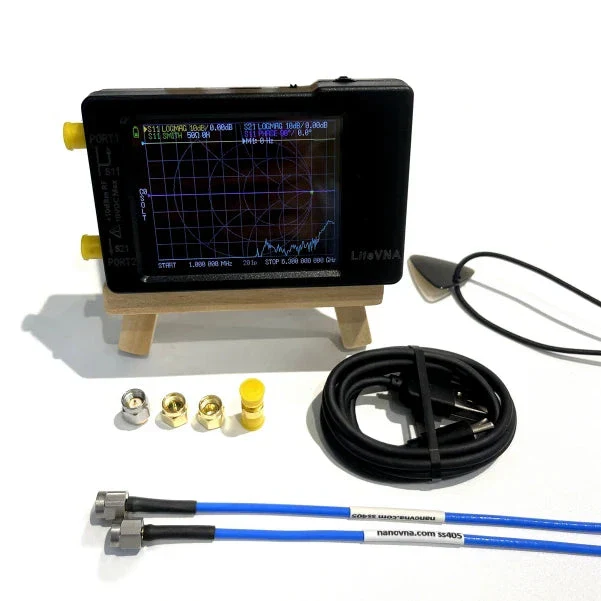

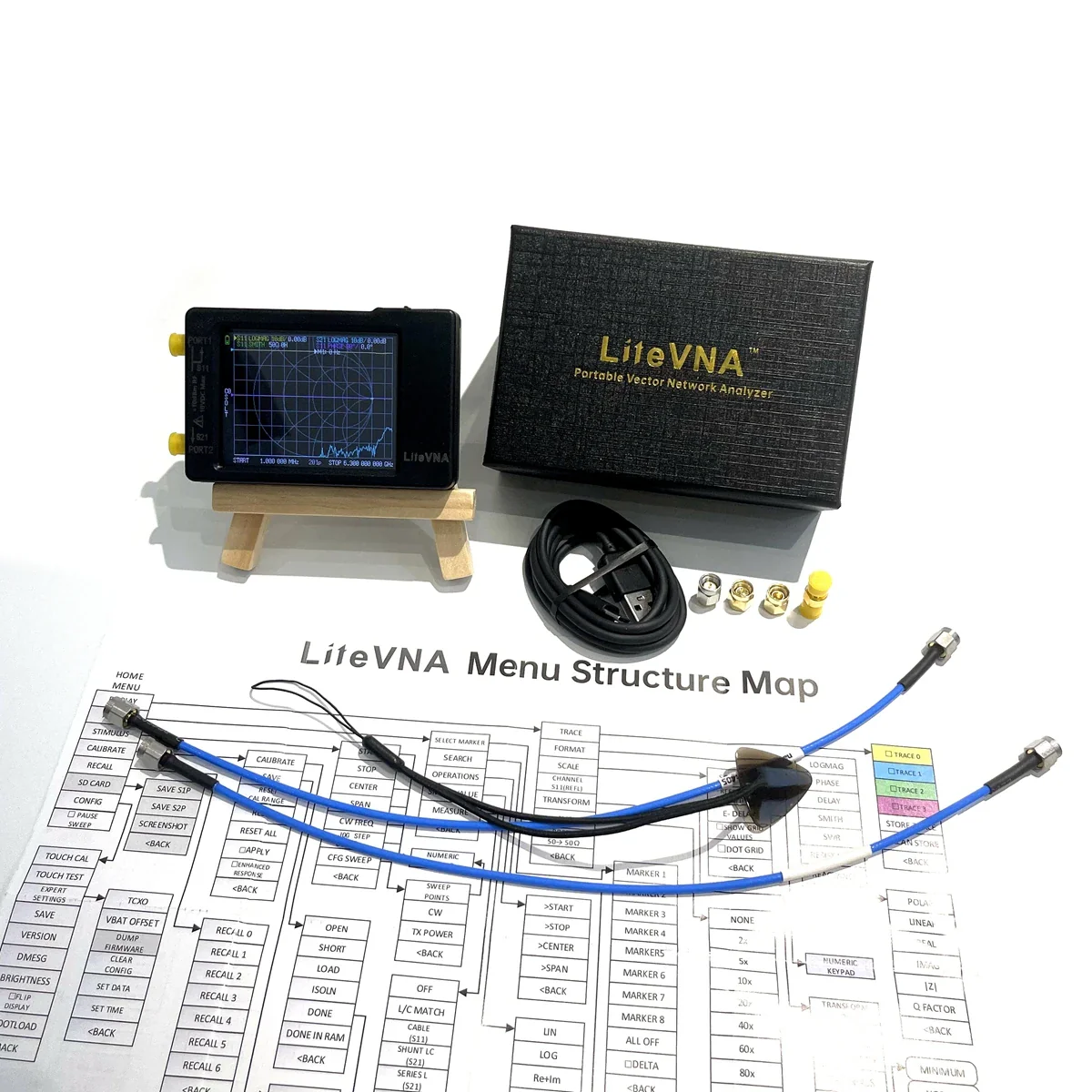

Packaging includes:Host (with 1300mAh battery, 2.8"display) x 1USB Type-C data cable x130cm SMA male to male SS405 RF cable x2SMA male calibration kit - OPEN x1SMA male calibration kit - SHORT x1SMA male calibration kit - LOAD x1SMA female to female connector x1Shipping way:This NanoVNA includes a battery. We ship by Aliexpress post shipping way. Then shipping time is longer than DHL/UPS etc.  But lower shipping cost.   Any question pls feel free to contact us.   sales11<at>zeenko.cn

For more please click: https://zeenko.tech/litevna

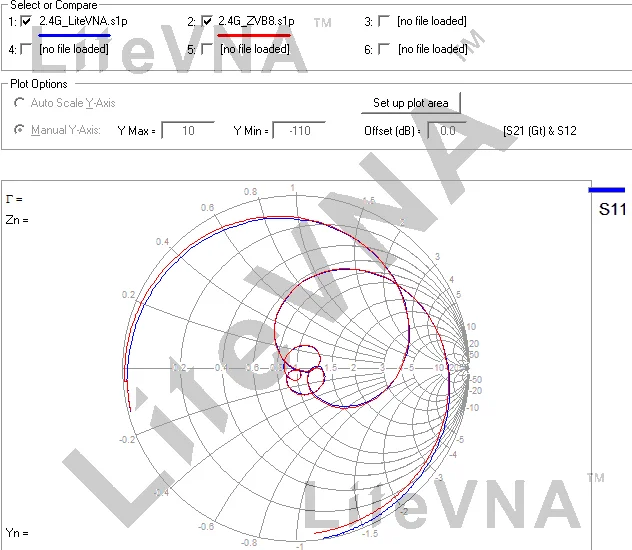

Compared with Rohde & Schwarz ZVB8
