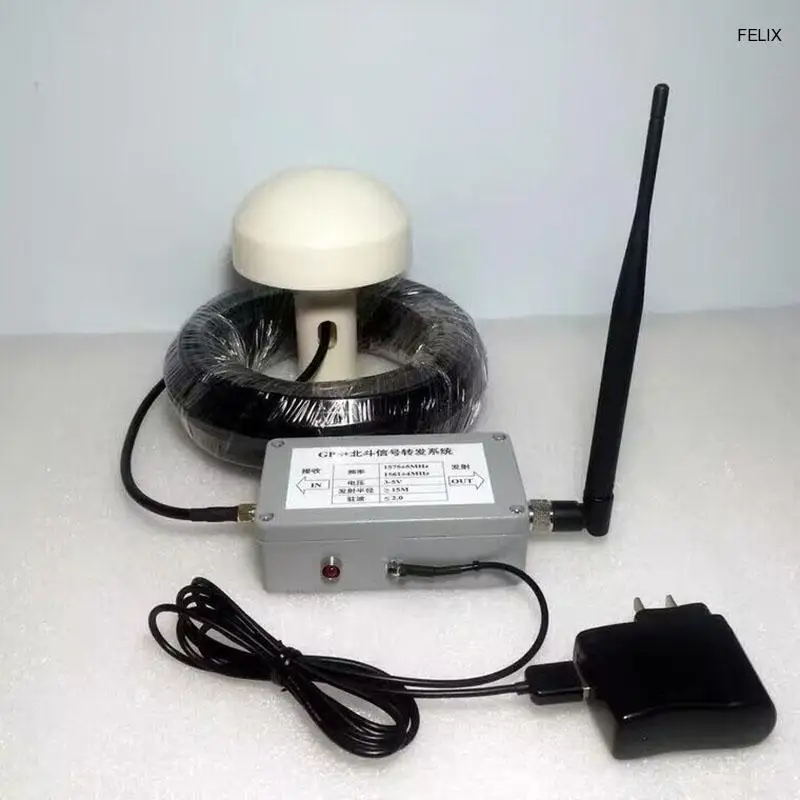

NEW Indoor Mushroom Head GPS Signal Repeater Amplifier Transmission Complete Kit with 15M Mushroom Receiving Antenna

Indoor Mushroom Head GPS Signal Repeater Amplifier Transmission Complete Kit with 15M Mushroom Receiving Antenna

Features:

1.Built with pure cast-aluminum housing, amplifier main unit ensures high quality signals
2.Pure copper 15m antenna cable is made in line with SYV-50-3 standard, prolong its life span
3.4-level amplifier tube with double filters on amplifier board
4.Easy wiring and simple operation to its signal transfer device
5.No limit to the number of indoor GPS transceivers and maintenance-free
6.Larger Coverage Area: The maximum distance is up to 15m (Can be customized)

Receiving Antenna:

Frequency: 1575±5MHz + Beidou
Polarization mode right circular polarization
Antenna Gain: ≥3.5dB

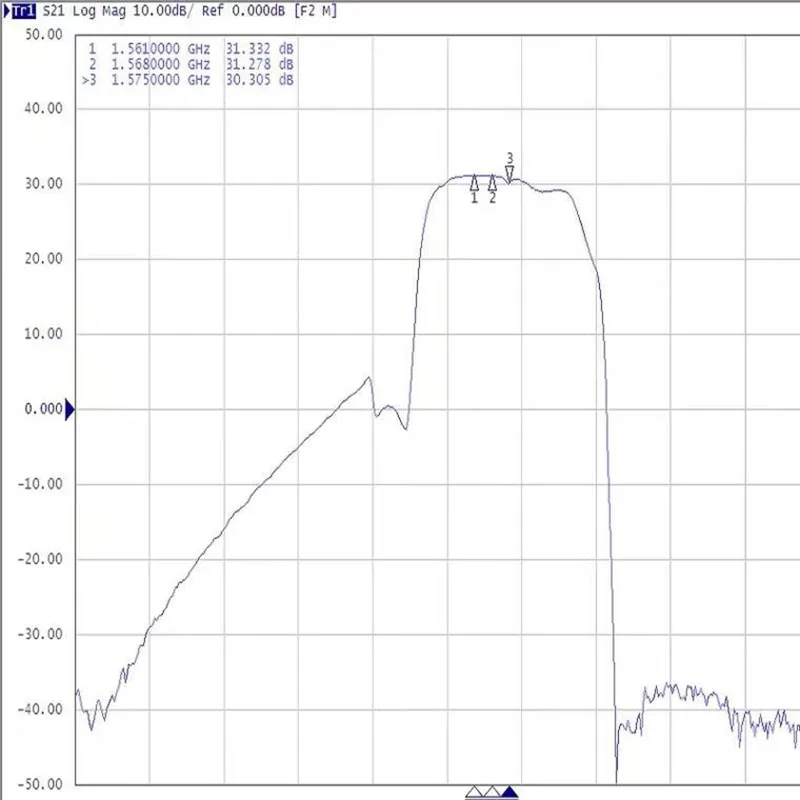

Amplifier Gain: ≥37dB
Noise Factor: ≤1.5dB

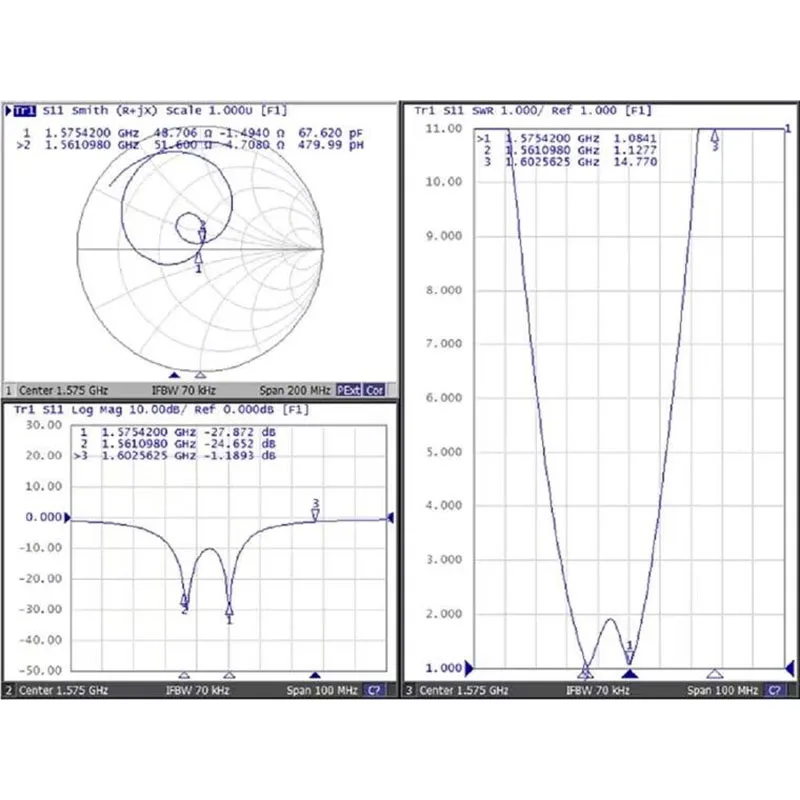

Reflection Loss: -14dB (SWR≤1.5)
P-1: ≥10dBm
Interference Suppression: ≥20dB (f0±100MHz)
Power Supply: 3V/5V DC
Connector: SMA
Mounting Way: Thread (M24X1.5) Connection
Volume: Diameter 96 x 126mm
Working Temperature: -45℃ to 85℃
Storage Temperature: -50℃ to 90℃
Humidity: 100%
