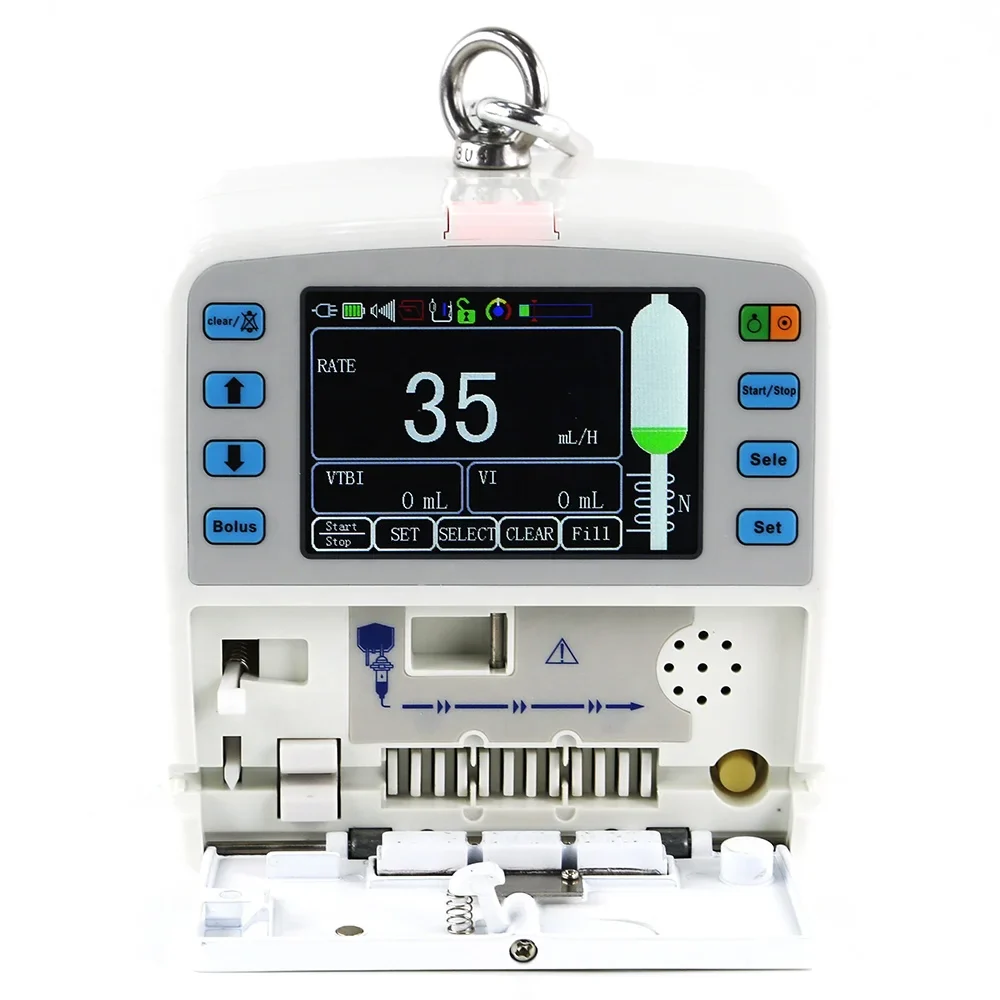

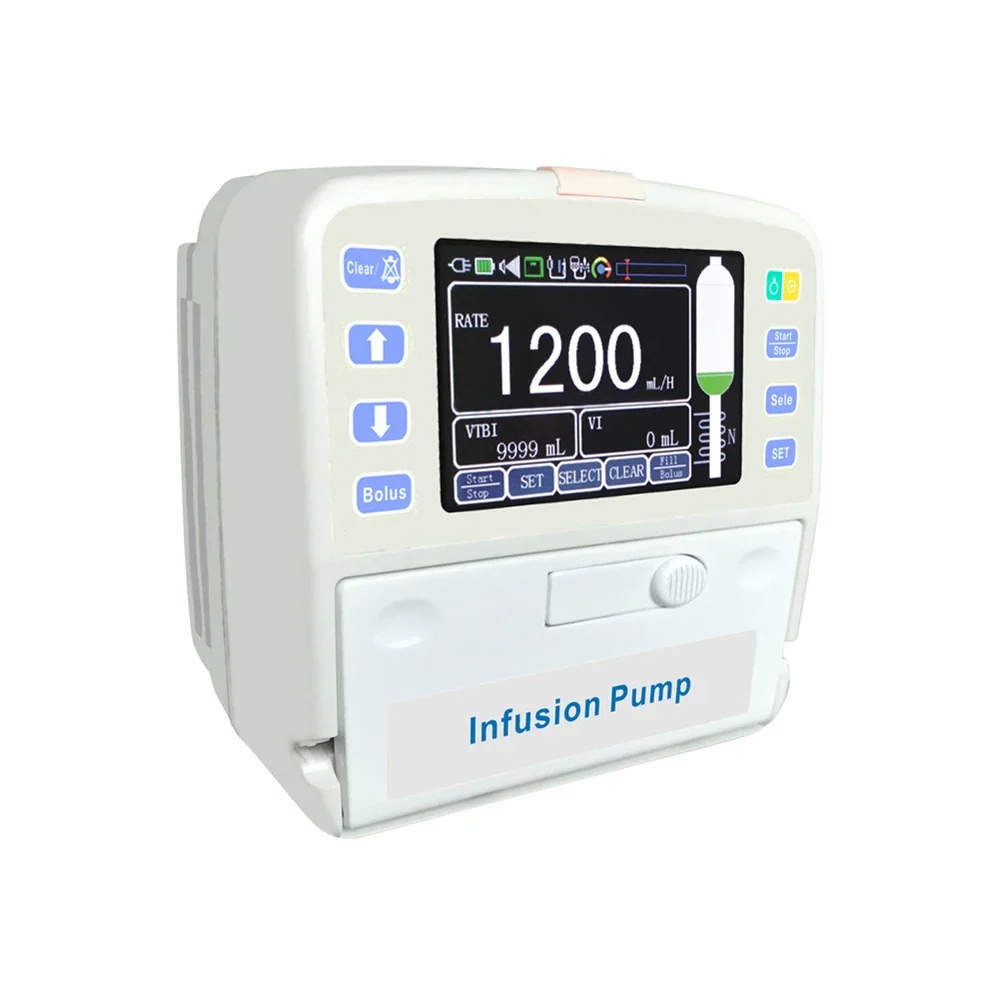

Medical Hospital Equipment 3.5 Touch LCD Screen Portable Mini Electric Human And Veterinary Infusion Pump



Main features:
- Bright color and large LCD Touch Screen
- Small size, easy to carry and economical to transport
- Compatible with infusion tubes any standard
- Three infusion modes for your selection
- KVO & Bolus function
- Intelligent pressure detection & occlusion detection (adjustable on 3 levels)
- Audiovisual alarm, shockproof and waterproof
- Autosave 2000 infusion record
- Heating function & Double CPU
- Real time display

Technical Parameters:
- Infusion mode: Rate mode, Drip mode, Trace mode
- Infusion set: Any brand of infusion set
- Infusion accuracy: ±5%
- Infusion rate range: Normal mode: 1~1200ml/h, increment 1 ml/h; Trace mode: 1-99.9ml/h, increment 0.1ml/h
- KVO rate: 1-8ml/h
- Purge/Bolus rate: 300-1200ml/h
- Volume To Be Infused (VTBI): 1-9999 ml
- Air Bubble detection: Ultrasound sensor detection of air bubble
- Occlusion detection: Occlusion pressure detection adjustable on 3 levels
- Alarm: Over, Low battery, Air, OccL, AC power failure, Door open, Time waited out, Error, Countdown
- Displayed information: AC power connection. Power, Volume. Door open. Tube. Occlusion level, Air, Occl., L.batt., Over, Error, Time waited out, Real time, Infusion rate, VTBI, Volume infused

Power supply: AC 100-220V, 50-60HZ
We will send the corresponding power plug and voltage according to your country.
Battery: Rechargeable lithium battery, 7.4 V, 2400mAh; Can work continuously for 3.5 hours at the rate of 25ml/h
Dimensions: 135x90x135 mm (L×W×H)
Weight: <=1.5Kg
Classification: Class II, BF type
Waterproof level: IPX3
