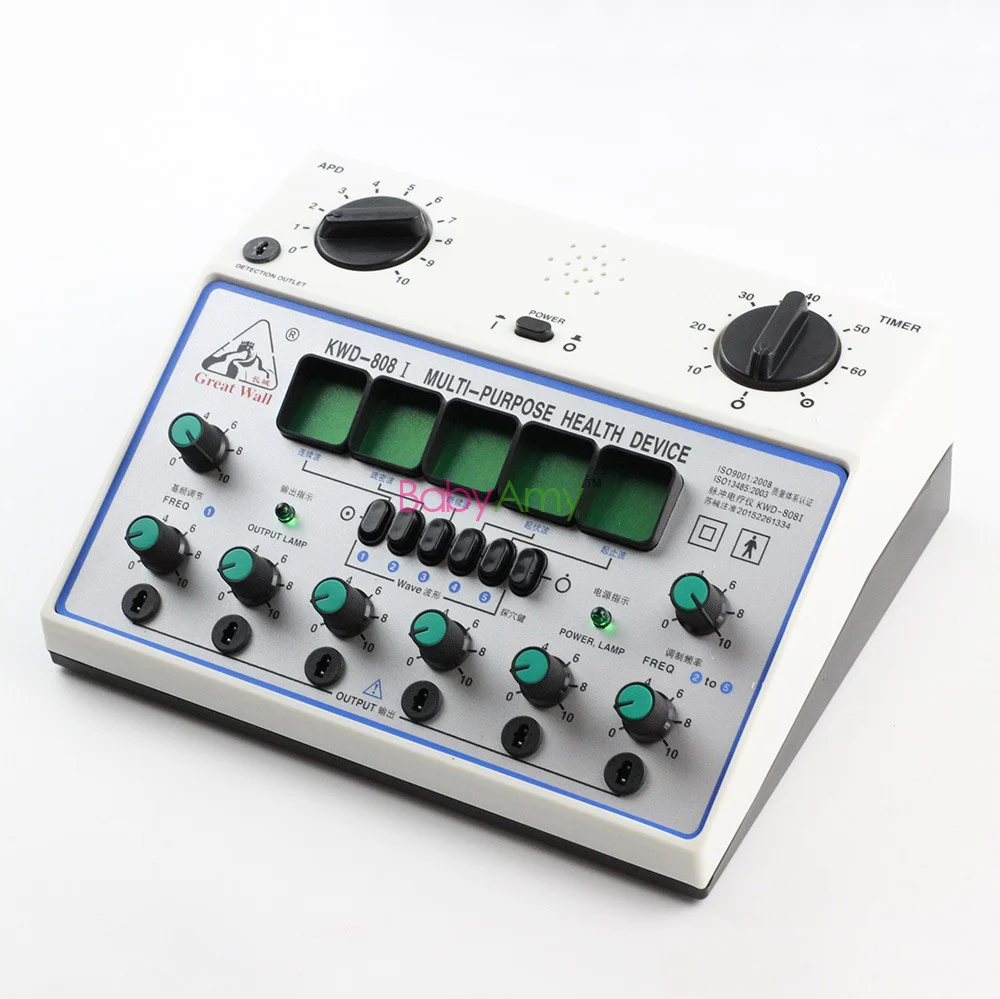

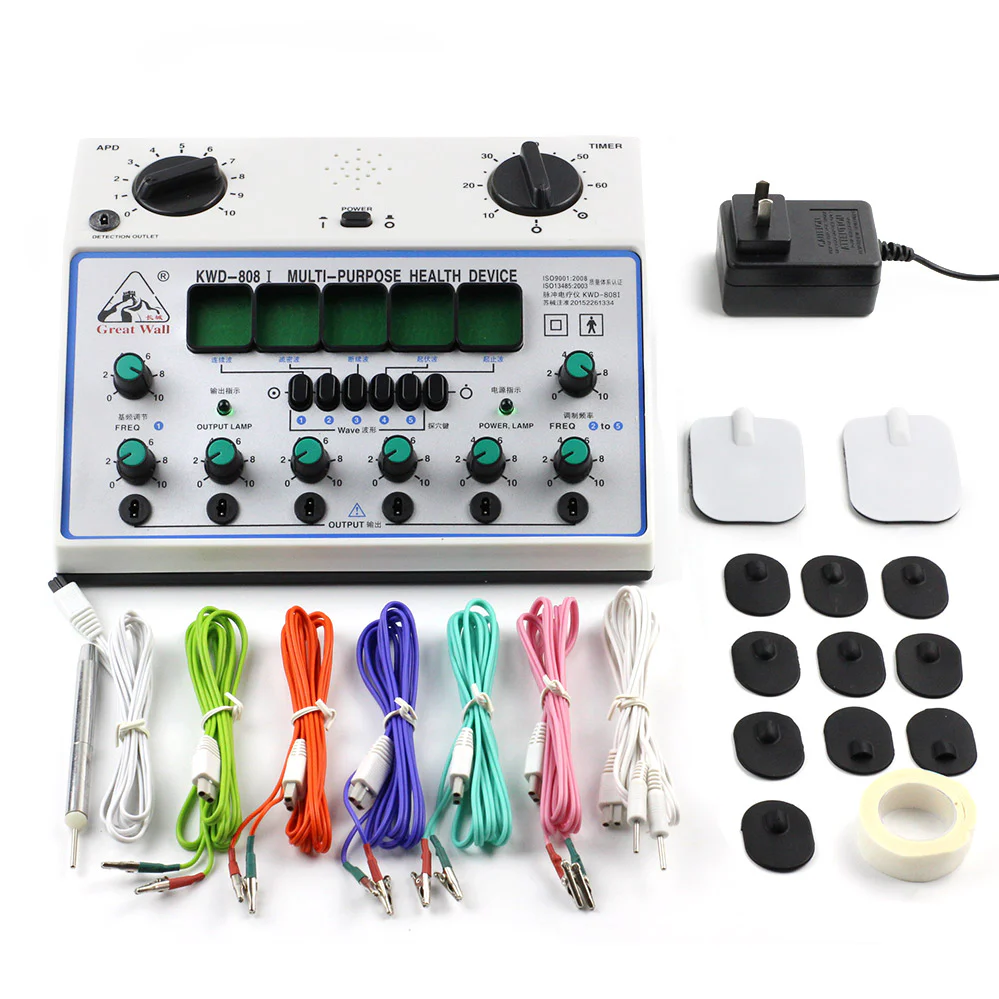

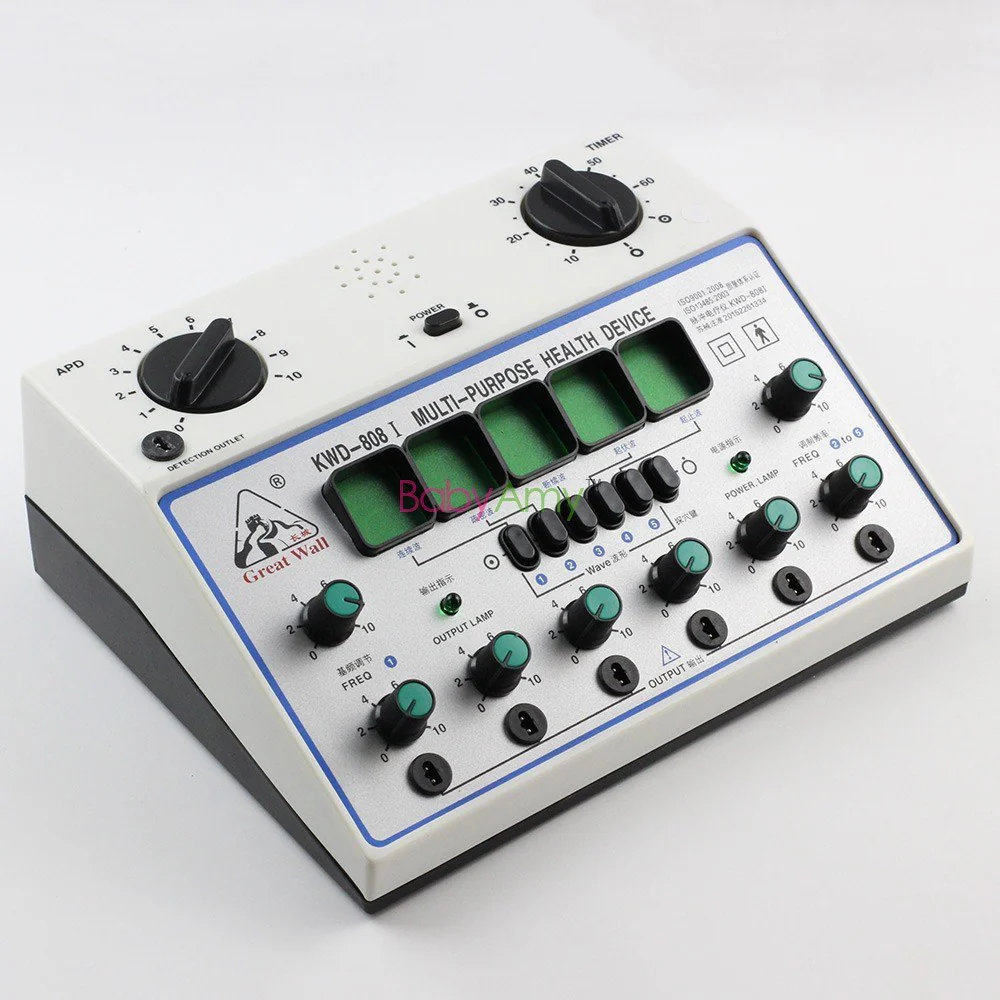

Great Wall KWD-808 I Electro Acupuncture Stimulator 6 Output Patch Electronic Massager Care D-1A Acupuncture Stimulator Machine KWD 808 I

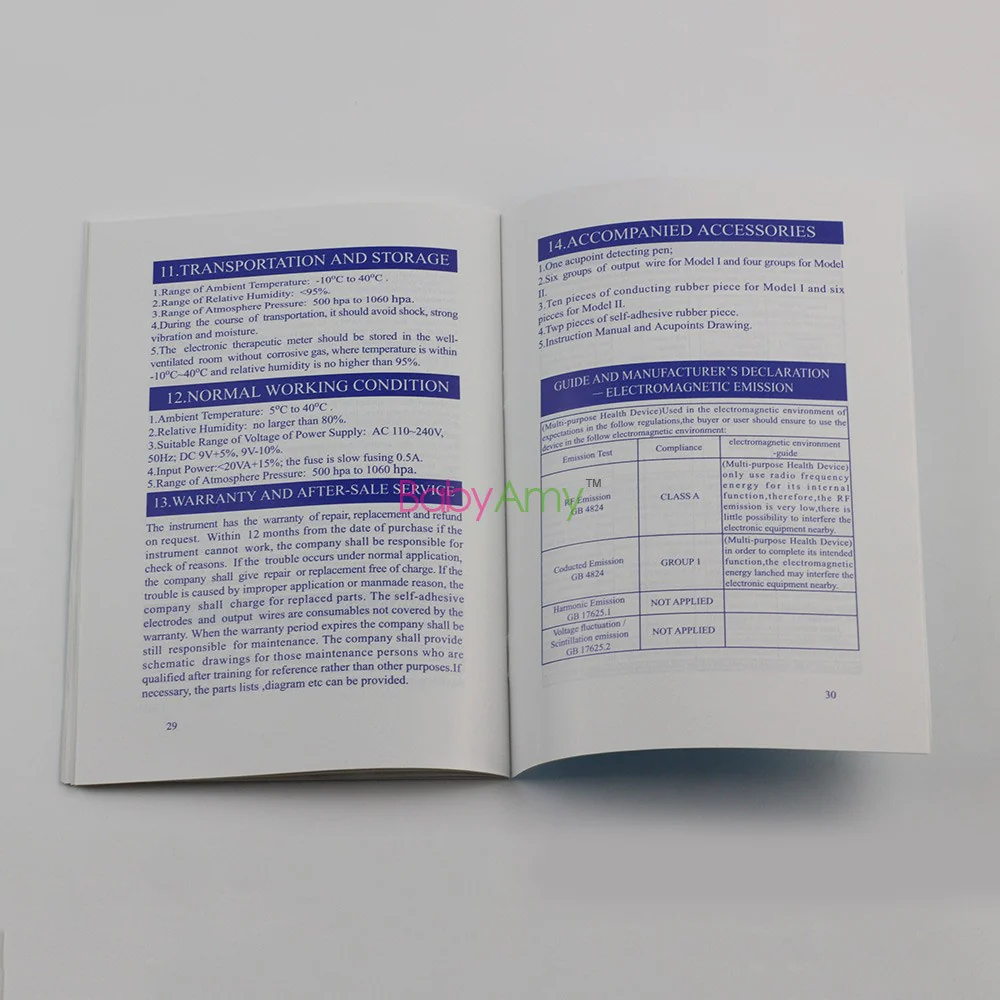

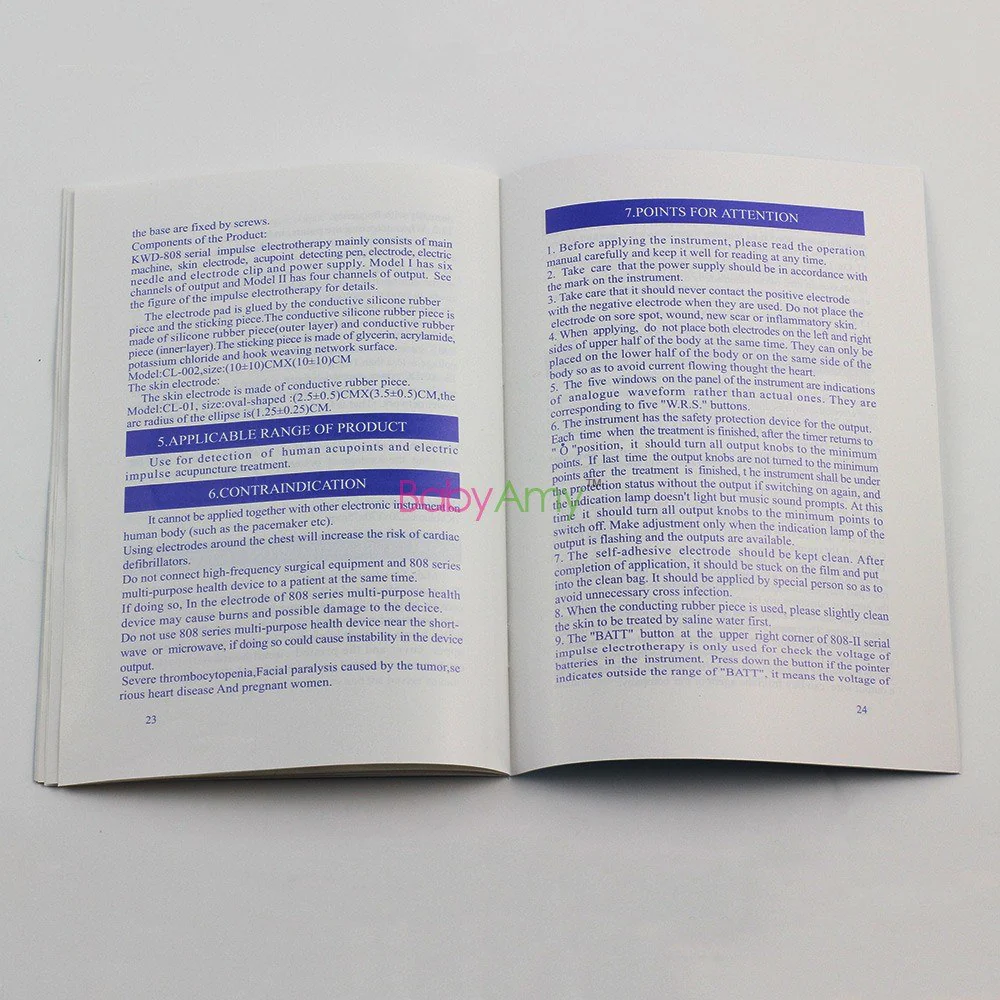

Great Wall KWD-808I User manual

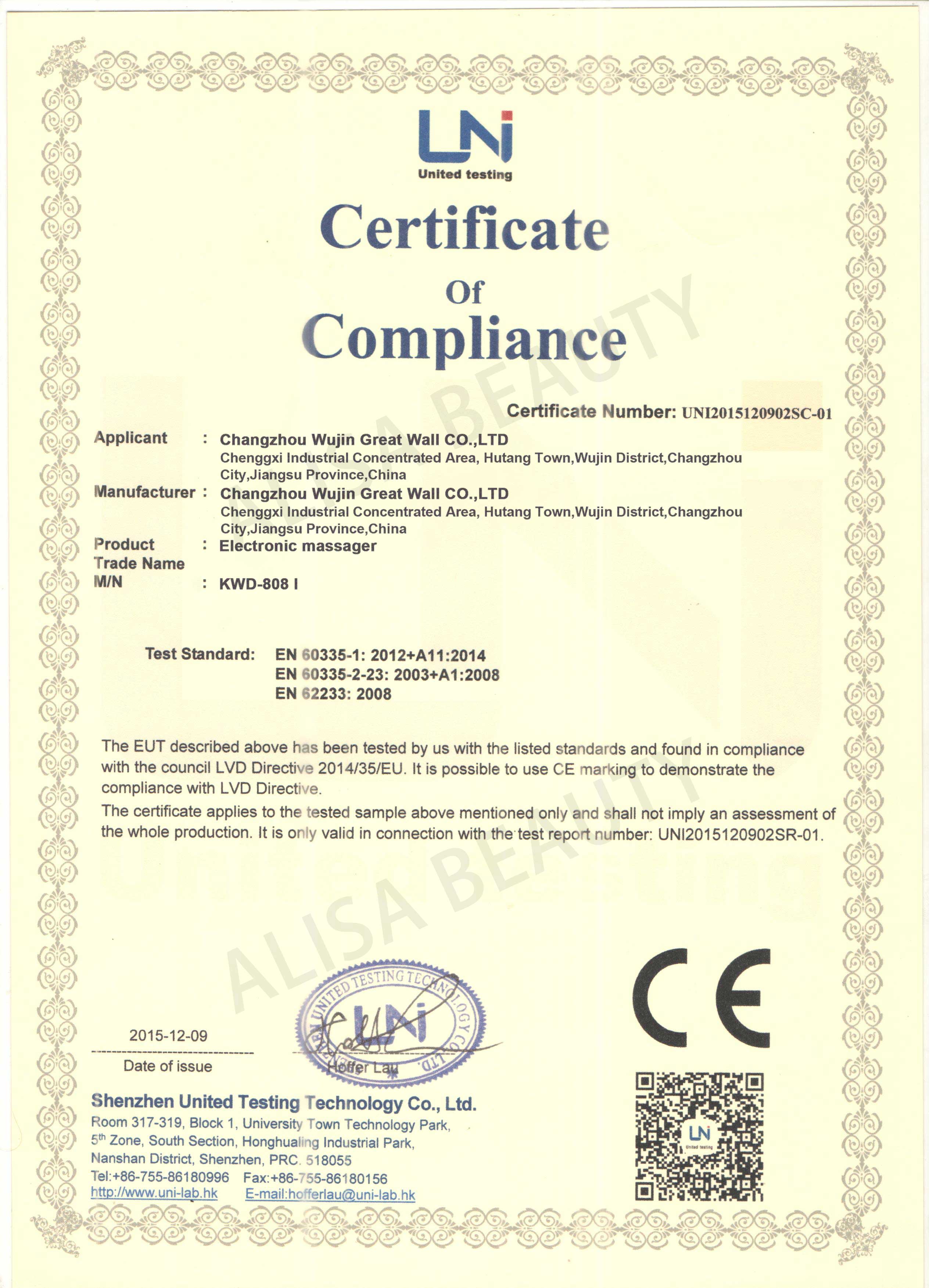

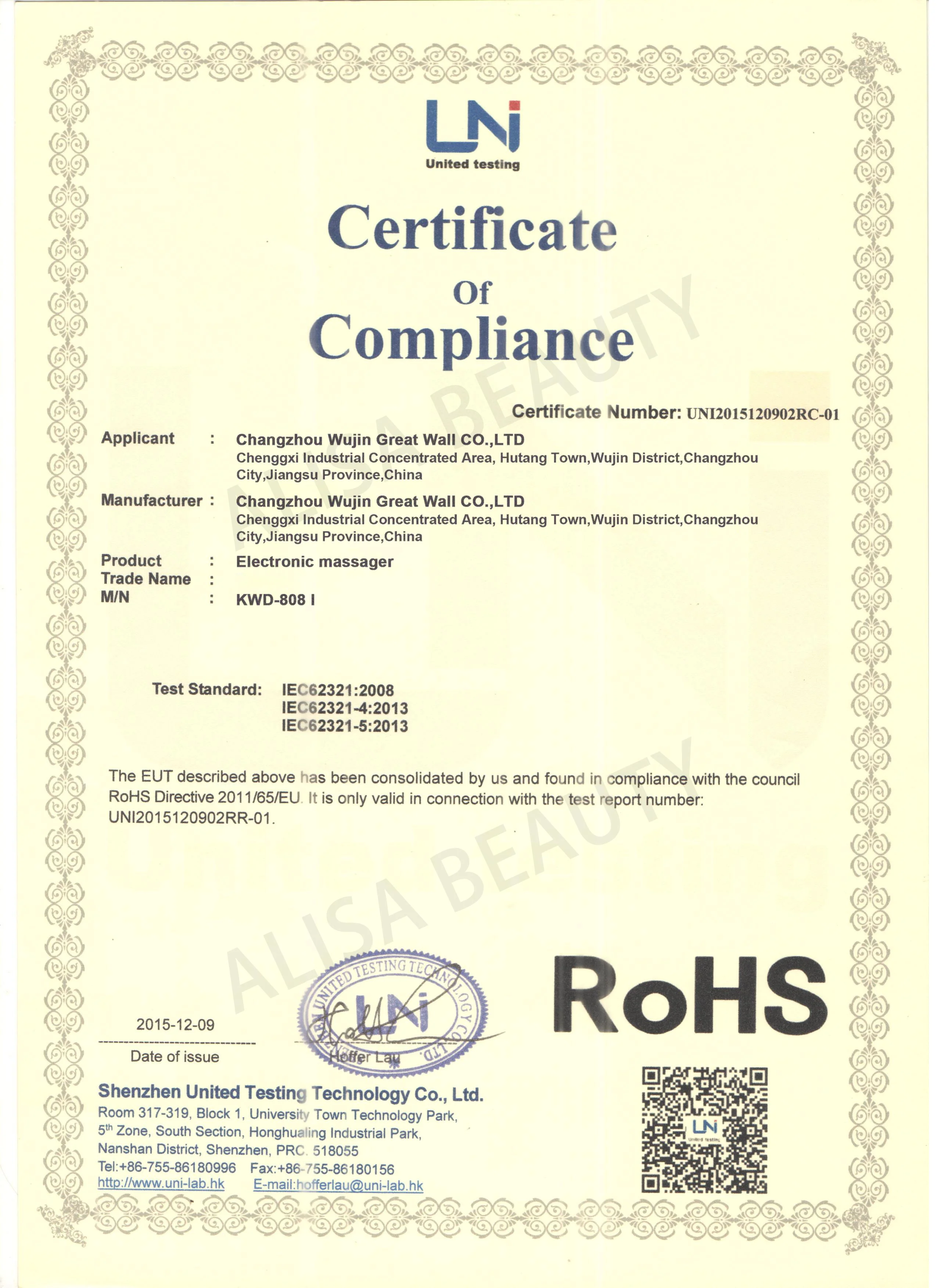

If your customs requires you to provide CE certification, please download the following file and send it to Customs.
Main Functions:
Replacement of hand massage
Acupuncture therapy
Six route output
Multi-pulse wave frequency LCD
Auto-timing Switch
Battery for operation
Main Specifications:
Specifications
500 ohm test load
Output channels
6 channels
Pulse shape
asymmetric biphasic triangular pulse wave
Pulse width
0.175 ms ± 30%
Voltage, max
less than 80 volts
Pulse Frequency
Continuous
1 to 100 Hz
Intermittent
1 to 100 Hz, interval time between groups is 5 sec
Dense
5 to 100 Hz
Distant-dense
One-fifth of the Dense Wave frequency, duration of distant
Duration of wave
Distant-dense
5 seconds
Dense
10 seconds
Continuous
15 seconds
Power source

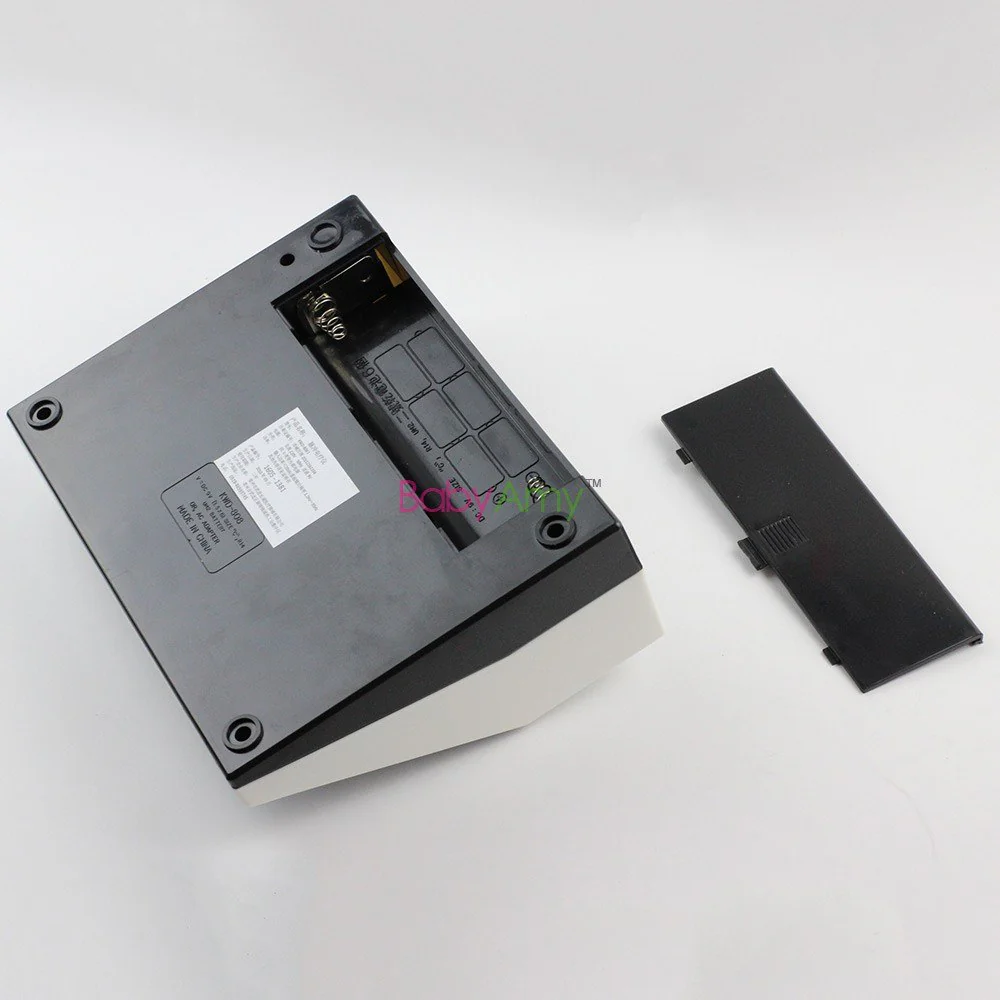

6 standard 1.5 volt C batteries, AC adapter
Size, color, weight
10.25" x 7" x 2.5", beige, 1.9 lbs.
Main Features:
Six (6) output channels
New IC circuitry, no cross over, no interference.
Continuous, intermittent, and dense-disperse (modulated) wave forms
Adjustable frequency : 1 ~ 100 Hz
Durable alligator clip wires

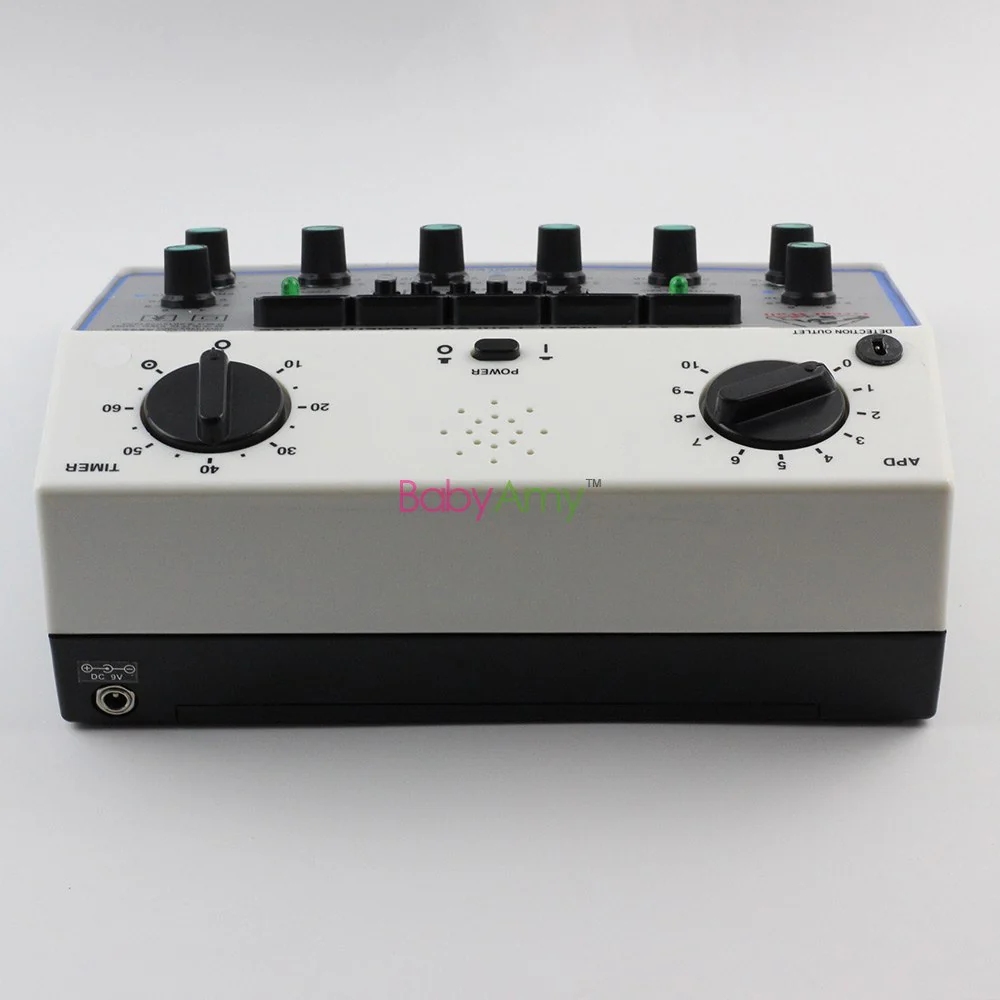

Timer 0 ~ 60 minutes
Output safety alert - all outputs must be turned off before power on the unit.
Technical Specifications:
Output Pulse Road:6 Channels outputs
Output Pulse Wave:un-symmetry two-direction pulse wave
Output Pulse frequency: 1 ~ 100 Hz continuously adjustable
Output Current: 50 mA(Load 500)
Output Pulse width:0.20ms
Input Power:5.0VA(including AC Adapter)
Power Source : DC 9V (CR14, UM2), or AC adaptor 110V-240V 50-60Hz
We will send the corresponding power plug according to your country.
Intermittent wave : continuous wave
Frequency adjustable in 1~100 Hz, break-wave time is 5 seconds, continuous
machine Dimensions :260 x 190 x 110 (mm)
One pc Weight :1 kg.
Many people do not know how to boot, please watch this video before use.https://youtu.be/sVSNnRSawAc
