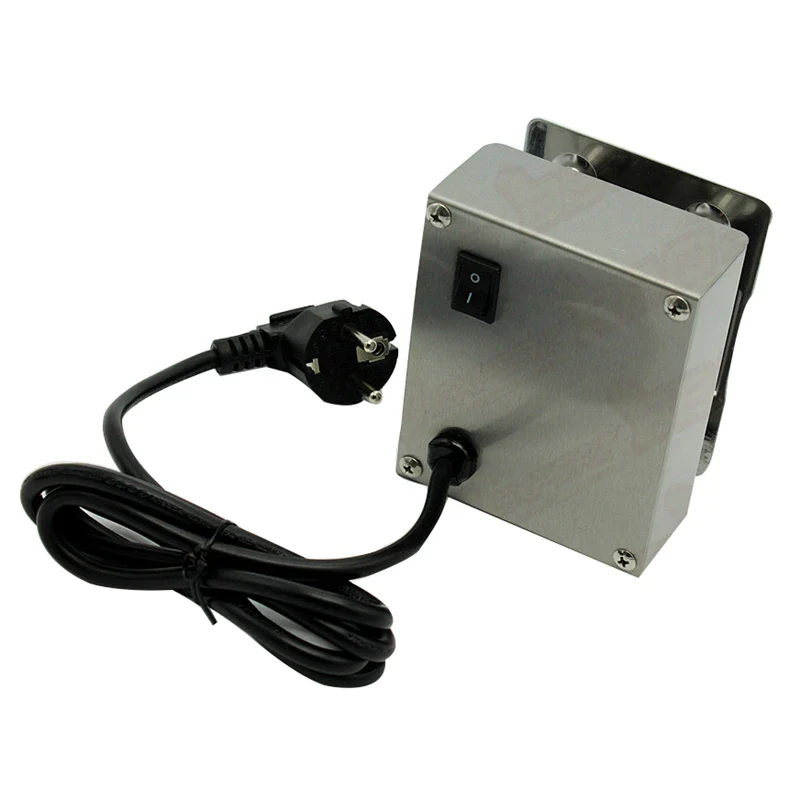

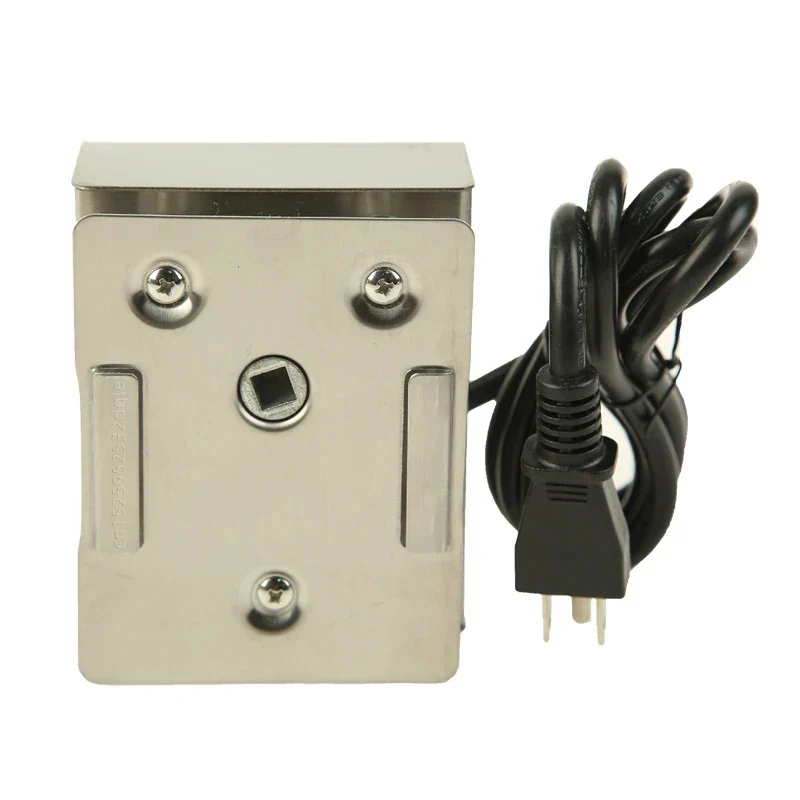

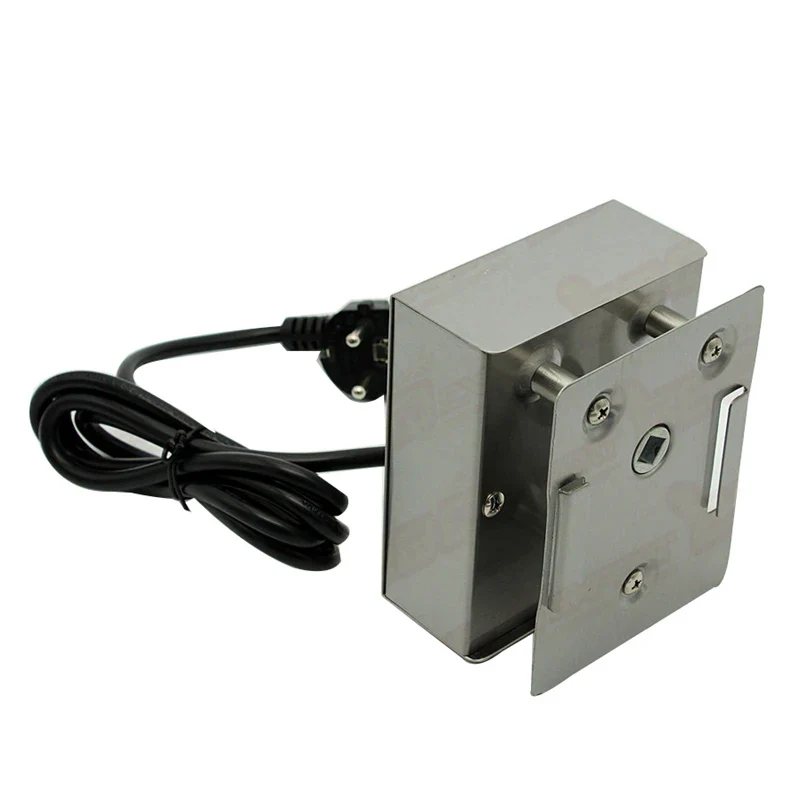

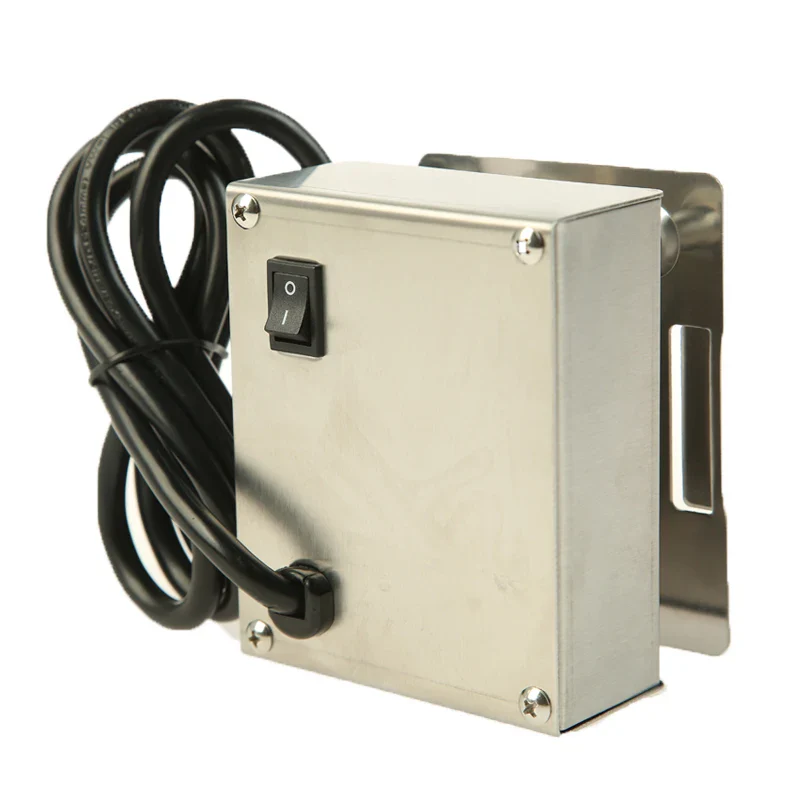

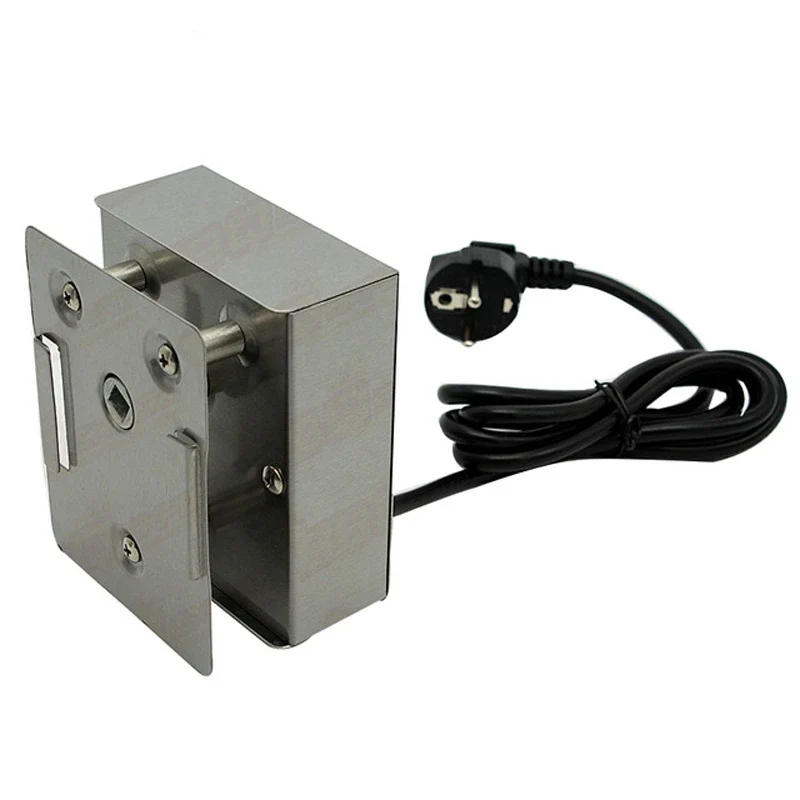

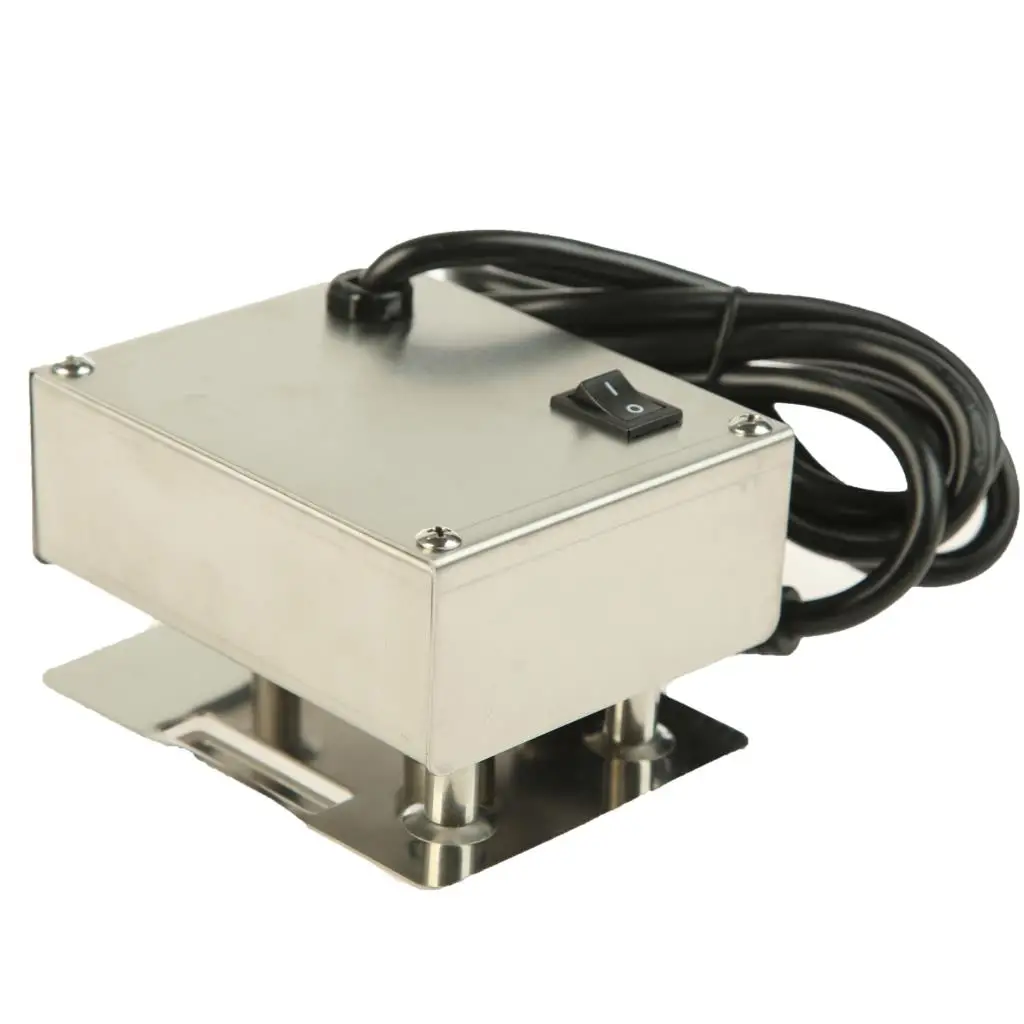

220V Rotating Motor Heavy Meat BBQ Rotisserie Eletric Grill Barbecue Spit Metal Rotisserie Motor Moteur Tournebroche

Supply various kind of bbq tools
Outdoor cooking/Barbeque tools/Barbeque accessories/BBQ Motor

Technical Specifications & Packaging

1. Rated Voltage: ~230V 50/60Hz
2. Rated Current: Less than 22mA
3. Rated Power: Below 4W
4. Motor Speed: 2 R.P.M (Custom options: 1 R.P.M with 24kgf.cm or 3 R.P.M with 10kgf.cm available)
5. Starting Voltage: Starts at 85% of the rated voltage
6. Number of Poles: 12 poles
7. Insulation Class: Class A
8. Insulation Resistance: Greater than 100MΩ
9. Dielectric Strength: AC1800V/S, leakage current ≤ 2mA, no leakage detected
10. Operating Environment: -5°C to 40°C, altitude below 1000m
11. Rotation Direction: CW/CCW
12. Output Shaft Torque: 0-13 kg.cm

• Torque Note: For grill lengths of 60-80cm, ensure food is balanced on the skewer. The actual load should be approximately 50% of the torque value. Proper centering increases torque efficiency. (13kgf.cm ≈ 6kg actual load).

13. Output Shaft Clearance: Less than 0.03mm
14. Motor Lifespan: Over 1800 hours of continuous operation under a 3kg.cm load
15. Certification:

• CE-certified by SGS testing agency
• Compliant with EU ROHS Directive (SGS-tested)

16. Cable Length: 1.5 meters
17. Product Packaging: White box (15.3 x 13.3 x 8.8 cm)
18. Outer Carton Packaging: Five-layer B=C corrugated paper
19. Quantity Per Carton: 10 pieces
20. Net Weight (N.W.): 7.5 kg (0.75 kg/pc)
21. Gross Weight (G.W.): 8 kg
22. Outer Carton Dimensions: 37.5 x 29.5 x 20 cm
23. Single Product Dimensions: 11.2 x 7.2 x 9.3 cm
24. Skewer Hole Diameter: 8 x 8 mm
