15KW Induction Heater Induction Heating Machine Metal Smelting Furnace High Frequency Welding Metal Quenching Equipment

Specification
Name: High Frequency Induction Heater
Power and Voltage：
15kW 220V/110V(optional)
25kW 380V
Frequency: 30-100KHZ
Cooling water pressure: > 0.2 MPa 2–5 L/Min
Inlet water temperature: < 40℃
Net weight: 24KG
Machine size: 460*200*385mm

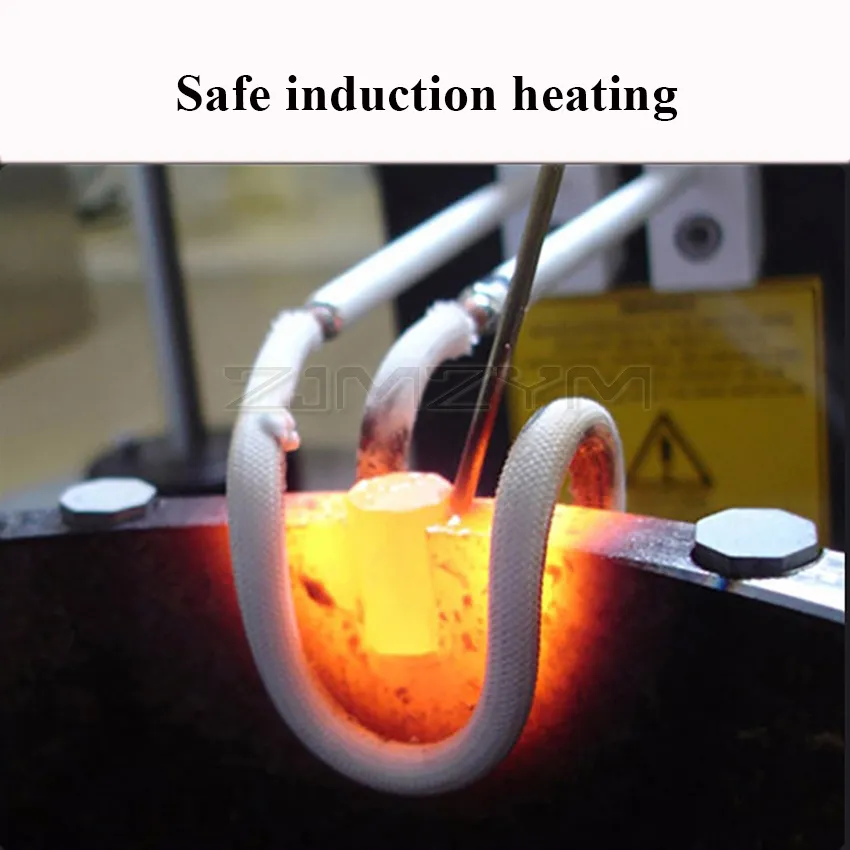

Applications: Welding, hot forging, hot fitting, quenching, melting, etc

Package Included:

Induction Heater*1



Features:

1. All solid state, using power device MOSFET, automatic frequency tracking

2. High frequency, fast heating speed, more energy saving

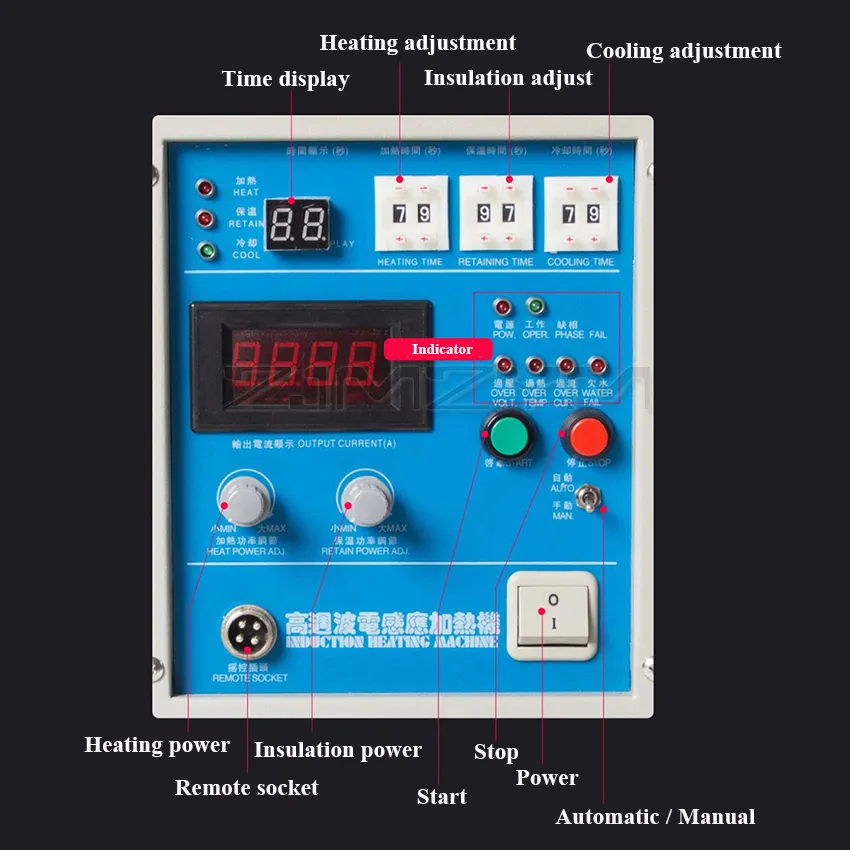

3. Safe and durable, adjustable and easy to operate

Instructions:

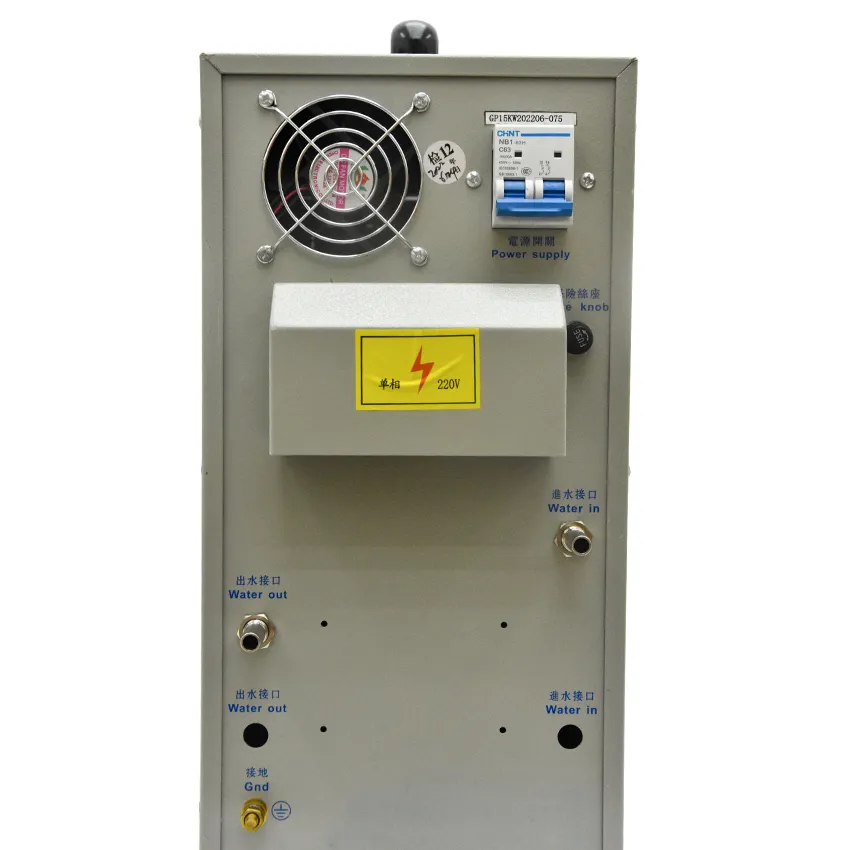

The machine needs to dissipate heat through water. The simple method is: water pump + water tank (please prepare them by yourself);

stainless steel water pump is recommended for the water pump.

Please purchase a 100-200L capacity for the water tank nearby;

it can also be equipped with a 1P chiller



Please note:

1. Voltage can be customized;

2. In the process of product upgrade, the appearance will be slightly changed, We will default to send the latest version, thank you~

Picture showing
